SMC5K36A-M3/H - Vishay

Description: ESD Suppressors / TVS Diodes 5000W Pppm Uni TVS SMC (DO-214AB)

Download SMC5K36A-M3/H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SMC5K36A-M3/H - Vishay - PCB symbol
click to zoom
PCB Footprints

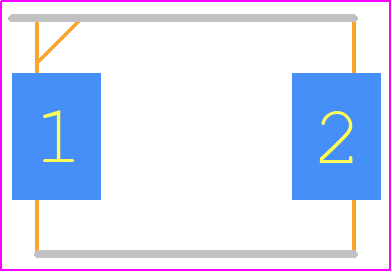

SMC5K36A-M3/H - Vishay PCB footprint - Diodes Moulded - Diodes Moulded - DO-214AB (SMC)_1
click to zoom
3D Models
SMC5K36A-M3/H - Vishay - 3D model - Diodes Moulded - DO-214AB (SMC)_1
click to zoom

SMC5K36A-M3/H Details

  • Manufacturer Part Number:

    SMC5K36A-M3/H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMC, 2 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.56

  • Additional Feature:

    EXCELLENT CLAMPING CAPABILITY

  • Breakdown Voltage-Max:

    44.2 V

  • Breakdown Voltage-Min:

    40 V

  • Breakdown Voltage-Nom:

    42.1 V

  • Clamping Voltage-Max:

    58.1 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    DO-214AB

  • JESD-30 Code:

    R-PDSO-C2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    5000 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2; UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    36 V

  • Reverse Current-Max:

    1 µA

  • Reverse Test Voltage:

    36 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

SMC5K36A-M3/H Frequently Asked Questions (FAQs)

  • The recommended land pattern for SMC5K36A-M3/H is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a solder mask clearance of 0.2 mm. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal issues.
  • While the SMC5K36A-M3/H is rated for operation up to 150°C, it's essential to consider the derating curves and thermal management when operating in high-temperature environments. Ensure proper heat sinking and thermal design to prevent overheating and ensure reliable operation.
  • To prevent damage, store the SMC5K36A-M3/H in a dry, cool place, away from direct sunlight and moisture. During shipping, use anti-static packaging and follow ESD handling precautions to prevent electrostatic discharge damage.
  • The recommended soldering profile for SMC5K36A-M3/H is a peak temperature of 260°C, with a dwell time of 10-30 seconds. Ensure that the soldering process is within the specified temperature range to prevent damage to the component.
  • While the SMC5K36A-M3/H is rated for operation in humid environments, it's essential to consider the moisture sensitivity level (MSL) of the component. Ensure that the component is properly sealed and follow the recommended storage and handling procedures to prevent moisture-related issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SMC5K36A-M3/H Overview

Use the download button to access the SMC5K36A-M3/H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SMC5K, or try a keyword search, such as Transient Suppressors
