SMCJ30A-E3/57T - Vishay

Description: Vishay SMCJ30A-E3/57T, Uni-Directional TVS Diode, 1500W, 2-Pin SMC

Download SMCJ30A-E3/57T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SMCJ30A-E3/57T - Vishay - PCB symbol
click to zoom
PCB Footprints

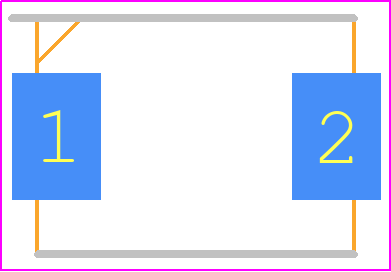

SMCJ30A-E3/57T - Vishay PCB footprint - Diodes Moulded - Diodes Moulded - SMC (DO-214AB)
click to zoom
3D Models
SMCJ30A-E3/57T - Vishay - 3D model - Diodes Moulded - SMC (DO-214AB)
click to zoom

SMCJ30A-E3/57T Details

  • Manufacturer Part Number:

    SMCJ30A-E3/57T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.06

  • Additional Feature:

    EXCELLENT CLAMPING CAPABILITY

  • Breakdown Voltage-Max:

    36.8 V

  • Breakdown Voltage-Min:

    33.3 V

  • Breakdown Voltage-Nom:

    35.05 V

  • Clamping Voltage-Max:

    48.4 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • Forward Voltage-Max (VF):

    3.5 V

  • JEDEC-95 Code:

    DO-214AB

  • JESD-30 Code:

    R-PDSO-C2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    1500 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    6.5 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    30 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

SMCJ30A-E3/57T Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SMCJ30A-E3/57T can be found in the Vishay Intertechnologies' application note AN10343, which provides guidelines for surface mount assembly of this component.
  • To prevent damage, handle the SMCJ30A-E3/57T by the body only, avoiding touching the leads or the glass passivated junction. Use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage.
  • The maximum allowable voltage derating for the SMCJ30A-E3/57T is 10% of the rated voltage, as specified in the datasheet. Exceeding this derating may affect the component's reliability and lifespan.
  • The SMCJ30A-E3/57T is rated for operation up to 150°C. However, it's essential to consider the component's power dissipation and thermal resistance when designing for high-temperature applications. Consult the datasheet and application notes for guidance on thermal management.
  • To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Use a soldering iron with a temperature range of 200°C to 240°C, and avoid applying excessive force or pressure during the soldering process.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SMCJ30A-E3/57T Overview

Use the download button to access the SMCJ30A-E3/57T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SMCJ3, or try a keyword search, such as Transient Suppressors
