The recommended land pattern for the SMCJ6.0CA can be found in the Bourns application note AN164, which provides guidelines for PCB layout and land pattern design.
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the Bourns application note AN165. Additionally, use a solder with a melting point below 260°C to prevent damage to the component.
The SMCJ6.0CA has an operating temperature range of -40°C to +150°C, but it's recommended to derate the voltage rating by 1.25% per °C above 125°C to ensure reliable operation.
While the SMCJ6.0CA is primarily designed for surge protection, it can be used in high-frequency applications up to 1 GHz. However, the component's impedance and insertion loss should be considered in the design, and simulation or testing is recommended to ensure optimal performance.
The SMCJ6.0CA is designed to provide ESD protection, but it's still important to follow proper ESD handling procedures during assembly and installation to prevent damage to the component.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SMCJ6.0CA Overview

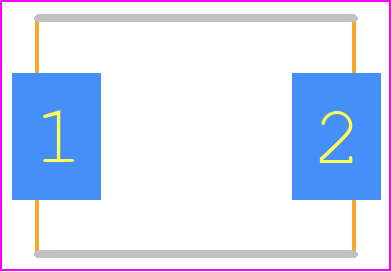

Use the download button to access the SMCJ6.0CA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SMCJ6,
or try a keyword search, such as Transient Suppressors
