SMDA05C-8.TBT footprint, schematic symbol and 3D model by SEMTECH

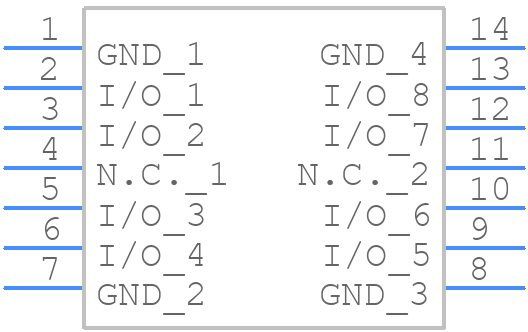

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SMDA05C-8.TBT
Part Number SMDA05C-8.TBT
Manufacturer SEMTECH
Pin Count 14
Part Category Diode
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SO-14
Released Date Apr 24, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SMDA05C-8.TBT Details

Manufacturer Part Number:
SMDA05C-8.TBT
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOIC
Package Description:
HALOGEN FREE AND ROHS COMPLIANT, SOP-14
Pin Count:
14
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Factory Lead Time:
4 Weeks
Manufacturer:
Semtech Corporation
YTEOL:
6.46
Breakdown Voltage-Min:
6 V
Breakdown Voltage-Nom:
6 V
Clamping Voltage-Max:
9.8 V
Configuration:
COMMON ANODE, 10 ELEMENTS
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code:
MS-012AB
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Non-rep Peak Rev Power Dis-Max:
300 W
Number of Elements:
10
Number of Terminals:
14
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity:
BIDIRECTIONAL
Qualification Status:
Not Qualified
Rep Pk Reverse Voltage-Max:
5 V
Surface Mount:
YES
Technology:
AVALANCHE
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30

SMDA05C-8.TBT Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a 50-ohm microstrip transmission line for the RF output.
The device requires a single 5V supply voltage. Ensure the voltage regulator is stable and can provide sufficient current. Add decoupling capacitors close to the device to reduce noise and ensure a stable voltage supply.
The device is rated for operation from -40°C to +85°C. However, the optimal operating temperature range is between 0°C to 70°C for maximum performance and reliability.
Use a logic analyzer or oscilloscope to monitor the device's input and output signals. Check the power supply voltage and decoupling capacitors. Verify the PCB layout and ensure that the device is properly biased and terminated.
The SMDA05C-8.TBT is a commercial-grade device and may not meet the requirements for high-reliability or aerospace applications. Consult with Semtech Corporation or a qualified reliability engineer to determine the device's suitability for such applications.
