The recommended soldering temperature is between 260°C to 280°C, with a maximum peak temperature of 280°C for a maximum of 10 seconds.
Yes, the SMDTD04100TB00JQ00 is designed for high-frequency applications up to 1 GHz, making it suitable for use in RF circuits, filters, and antennas.
The maximum operating voltage derating is 80% of the rated voltage, which means that if the rated voltage is 100V, the maximum operating voltage should not exceed 80V.
The SMDTD04100TB00JQ00 has a moisture sensitivity level of 3, which means it can withstand normal humidity levels. However, it's not recommended for use in extremely humid or moist environments without proper protection.
The ESR of the SMDTD04100TB00JQ00 is not explicitly stated in the datasheet, but it's typically in the range of 50-100 mΩ for Wima's SMDTD series capacitors.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SMDTD04100TB00JQ00 Overview

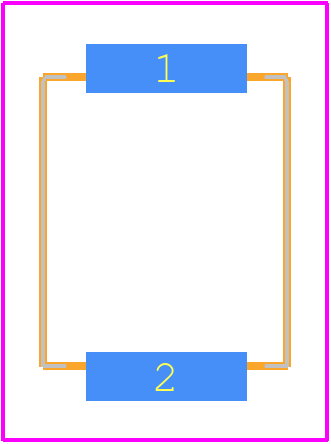

Use the download button to access the SMDTD04100TB00JQ00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SMDTD,
or try a keyword search, such as Film Capacitors
