SMJ320C6415DGADW60 - Texas Instruments

SMJ320C6415DGADW60 Details

• Manufacturer Part Number:

  SMJ320C6415DGADW60

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  PGA

• Pin Count:

  570

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Address Bus Width:

  23

• Barrel Shifter:

  NO

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  75 MHz

• External Data Bus Width:

  64

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-CPGA-P570

• Length:

  33.275 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  64

• Number of External Interrupts:

  4

• Number of Terminals:

  570

• Number of Timers:

  3

• Operating Temperature-Max:

  115 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

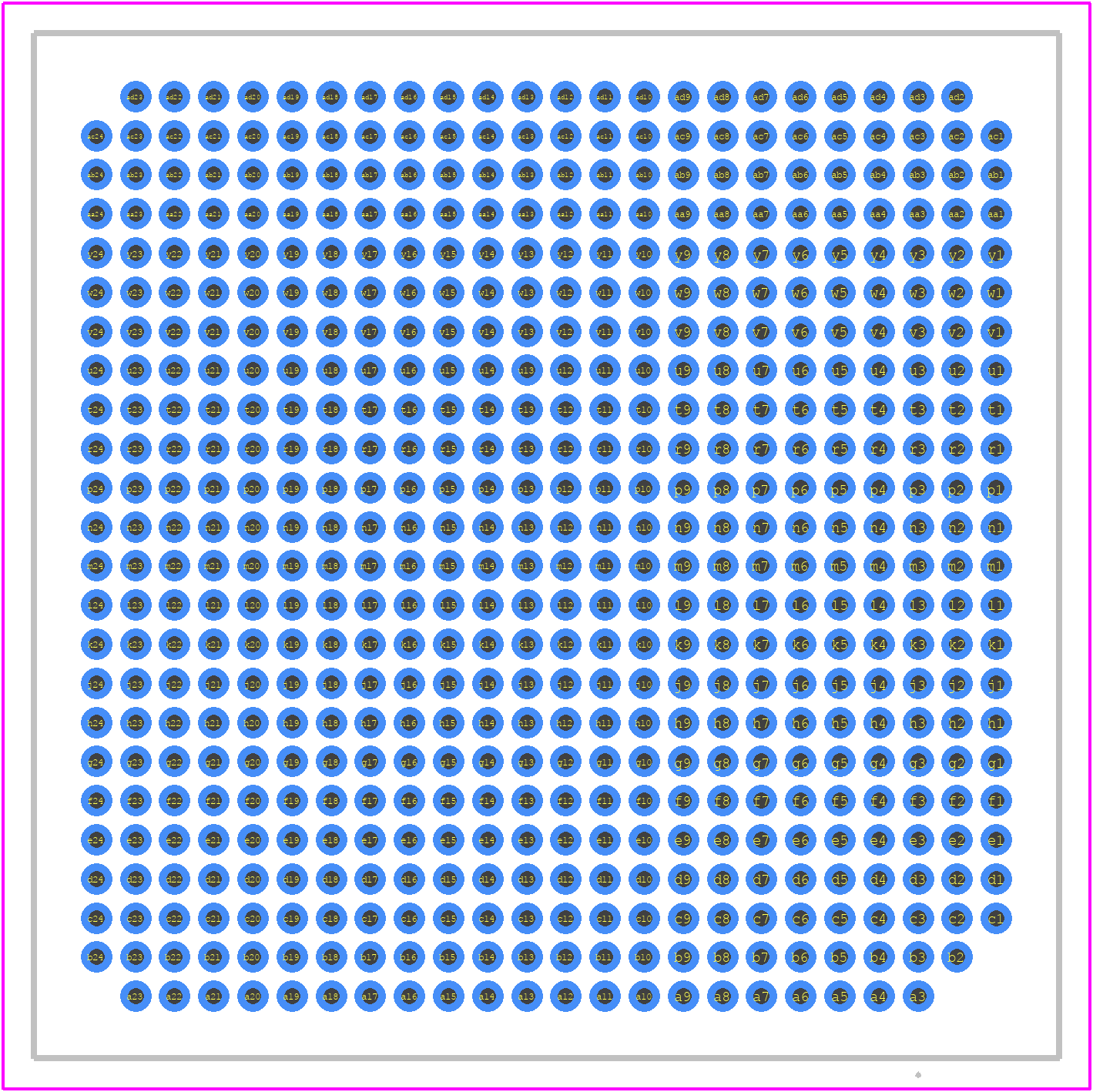

• Package Code:

  SPGA

• Package Equivalence Code:

  PGA570,24X24,50

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, SHRINK PITCH

• Qualification Status:

  Not Qualified

• RAM (words):

  4096

• Screening Level:

  MIL-PRF-38535

• Seated Height-Max:

  6 mm

• Supply Voltage-Max:

  1.44 V

• Supply Voltage-Min:

  1.36 V

• Supply Voltage-Nom:

  1.4 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  PERPENDICULAR

• Width:

  33.275 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
