SMLJ28CAHE3A-TP-A001 - MCC

Description: AEC-Q101 Qualified • For Surface Mount Application in Order to Optimize Board Space • Built-in Strain Relief • Glass Passivated Junction • Excellent Clamping Capability • Repetition Rate(duty cycle):0.5% • Fast Response Time: Typical Less Than 1ps From 0V to BV Min • Typical ID Less Than 1μA above 10V • High Temperature Soldering: 260°C/10 Seconds at Terminals • Halogen Free. "Green" Device (Note 1) • Moisture Sensitivity Level 1 • For Bidirectional Devices Add “C” To The Suffix of The Part Numb

Download SMLJ28CAHE3A-TP-A001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SMLJ28CAHE3A-TP-A001 - MCC - PCB symbol
click to zoom
PCB Footprints

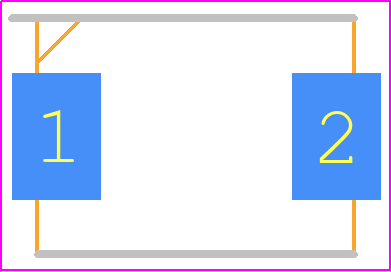

SMLJ28CAHE3A-TP-A001 - MCC PCB footprint - Diodes Moulded - Diodes Moulded - SMC
click to zoom
3D Models
SMLJ28CAHE3A-TP-A001 - MCC - 3D model - Diodes Moulded - SMC
click to zoom

SMLJ28CAHE3A-TP-A001 Details

  • Manufacturer Part Number:

    SMLJ28CAHE3A-TP-A001

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    7

  • Breakdown Voltage-Max:

    34.4 V

  • Breakdown Voltage-Min:

    31.1 V

  • Clamping Voltage-Max:

    45.4 V

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • Non-rep Peak Rev Power Dis-Max:

    3000 W

  • Packing Method:

    TR

  • Rep Pk Reverse Voltage-Max:

    28 V
