SMLVN6RGB1W1 footprint, schematic symbol and 3D model by ROHM Semiconductor

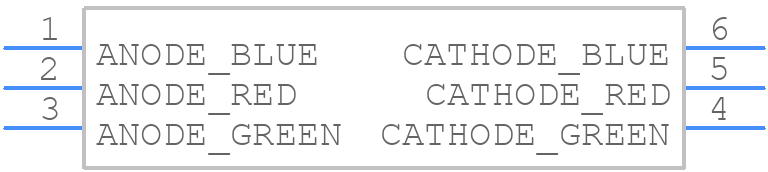

Symbol

PCB Footprints

3D Models

SMLVN6RGB1W1 Details

The recommended storage temperature for SMLVN6RGB1W1 is -30°C to 30°C, with a relative humidity of 60% or less.
While the SMLVN6RGB1W1 is not specifically designed for outdoor use, it can be used in outdoor applications if properly sealed and protected from environmental factors such as moisture, UV, and extreme temperatures.
The maximum forward current for the SMLVN6RGB1W1 is 30mA. Exceeding this current may reduce the LED's lifespan or cause damage.
To prevent ESD damage, handle the SMLVN6RGB1W1 with an anti-static wrist strap or mat, and avoid touching the pins or leads. Store the LEDs in an anti-static bag or container when not in use.
The typical voltage drop for the SMLVN6RGB1W1 is around 2.0-2.5V, depending on the color and forward current.

Expert Contribution

System Verified

Community Approved

Use the download button to access the SMLVN6RGB1W1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SMLVN, or try a keyword search, such as Visible LEDs
