SMPL20M0T0LB footprint, schematic symbol and 3D model by Positronic

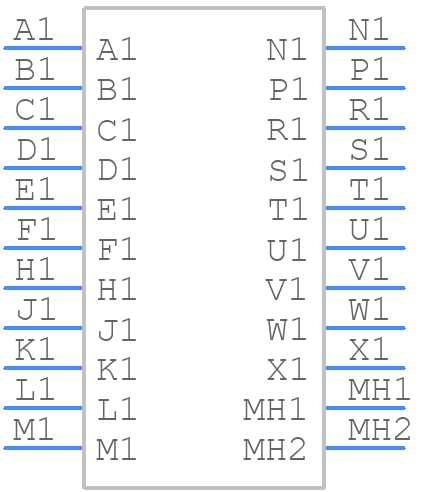

Symbol

click to zoom

PCB Footprints

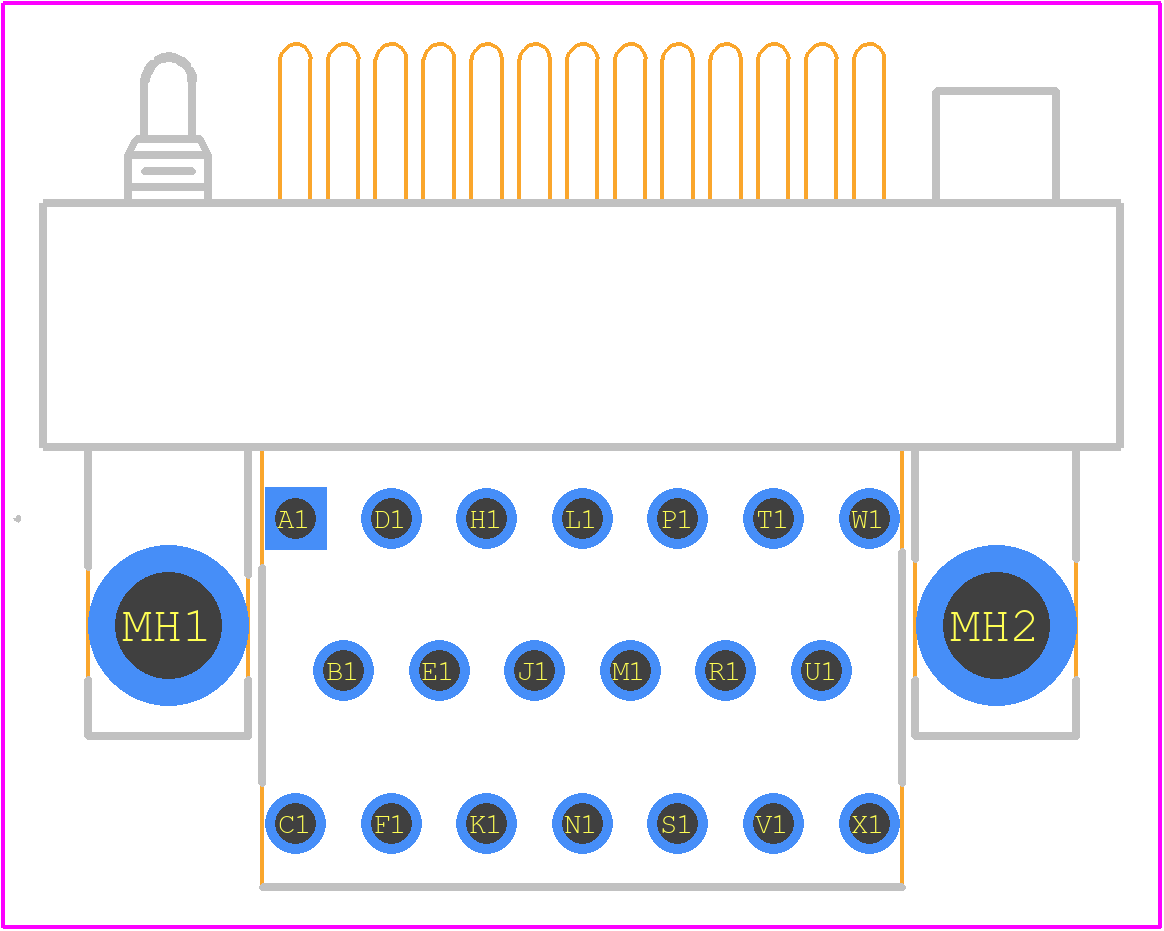

SMPL20M0T0LB - Positronic PCB footprint - Other - Other - SMPL20M0T0LB-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SMPL20M0T0LB
Part Number SMPL20M0T0LB
Manufacturer Positronic
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - SMPL20M0T0LB-2
Released Date Feb 1, 2024
Last Modified Date Feb 1, 2024 1:17 PM UTC
Pinout / Pin List Click Here (Member Only)

SMPL20M0T0LB Details

Manufacturer Part Number:
SMPL20M0T0LB
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Amphenol Positronic
YTEOL:
8
Additional Feature:
STANDARDS: MIL-DTL-28748, POLARIZED
Connector Type:
RACK AND PANEL CONNECTOR
Contact Finish Mating:
GOLD (15) OVER NICKEL
Contact Finish Termination:
GOLD OVER NICKEL
Contact Gender:
MALE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED DIALLYL PHTHALATE
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
20

SMPL20M0T0LB Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
Yes, the SMPL20M0T0LB is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
Yes, the SMPL20M0T0LB has a rating of IP67, which means it is protected against dust and water immersion up to 1 meter for 30 minutes, making it suitable for outdoor use.
The operating temperature range for the SMPL20M0T0LB is -40°C to 125°C, making it suitable for a wide range of applications.
While the SMPL20M0T0LB is designed for 20 AWG wire, it can accommodate wire sizes from 18 AWG to 22 AWG, but the wire stripping length and insulation diameter may need to be adjusted accordingly.

Trust Checks

Community Provided

System Verified

Community Approved

SMPL20M0T0LB Overview

Use the download button to access the SMPL20M0T0LB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SMPL2, or try a keyword search, such as Multiway Rack and Panel Connectors

About Positronic

Positronic is a global manufacturer of high-reliability electronic connectors serving customers in a variety of industries, including aerospace, defense, industrial, and medical. Positronic's products include rectangular connectors, circular connectors, D-subminiature connectors, and power & hybrid connectors. The company also offers customized solutions for customers with unique needs. Its connectors are designed to meet demanding requirements for reliability, performance, and durability.
