SMS12RE3TR29 - Souriau

Description: Headers & Wire Housings 12P Receptacle Sz 16 Socket Assembly

Download SMS12RE3TR29 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SMS12RE3TR29 - Souriau - PCB symbol
click to zoom
PCB Footprints

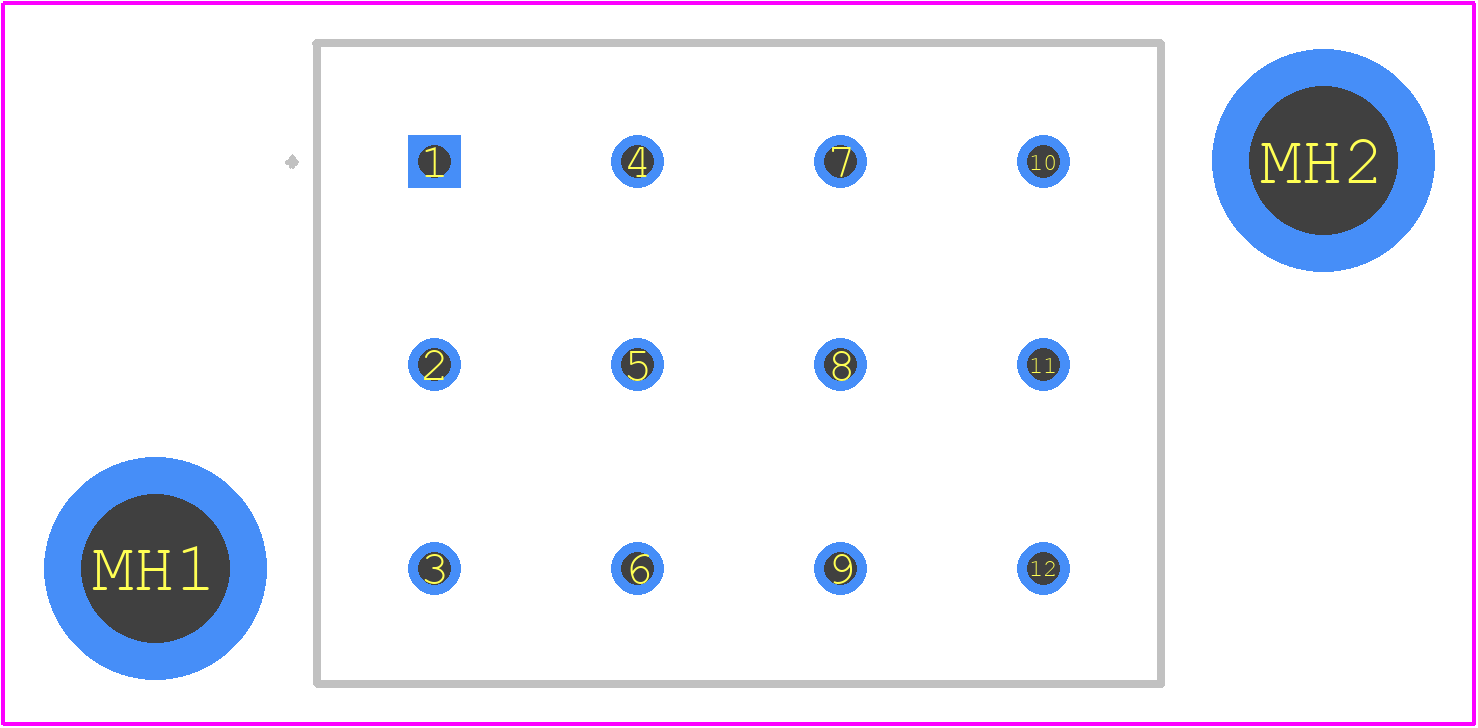

SMS12RE3TR29 - Souriau PCB footprint - Other - Other - SMS12RE3TR29-4
click to zoom
3D Models
SMS12RE3TR29 - Souriau - 3D model - Other - SMS12RE3TR29-4
click to zoom

SMS12RE3TR29 Details

  • Manufacturer Part Number:

    SMS12RE3TR29

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    SOURIAU-SUNBANK

  • Additional Feature:

    POALRIZED; IP40

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Style:

    RND PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    7.5 A

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-2

SMS12RE3TR29 Frequently Asked Questions (FAQs)

  • The recommended torque value for the SMS12RE3TR29 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the SMS12RE3TR29 connector is designed to withstand high-vibration environments, making it suitable for aerospace, defense, and other applications where vibration is a concern.
  • The SMS12RE3TR29 connector has an operating temperature range of -55°C to 150°C, making it suitable for use in extreme temperature environments.
  • Yes, the SMS12RE3TR29 connector is designed to withstand exposure to harsh chemicals, including fuels, oils, and other corrosive substances.
  • The SMS12RE3TR29 connector has a mating cycle life of 500 cycles, making it suitable for applications where frequent mating and unmating are required.
