SMS36GE3 - Souriau

Description: 36 way straight PCB female header

Download SMS36GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

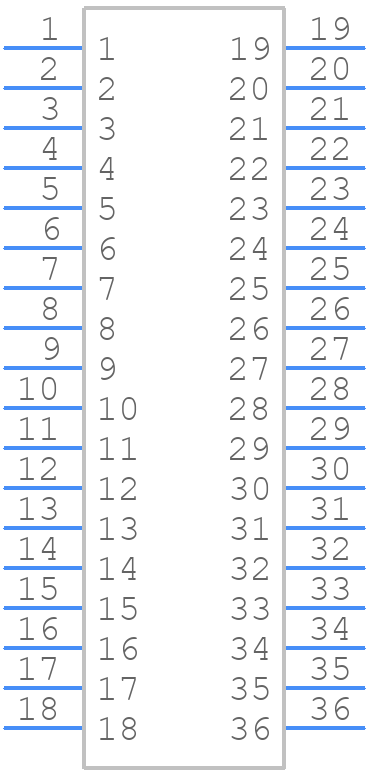

SMS36GE3 - Souriau - PCB symbol
click to zoom
PCB Footprints

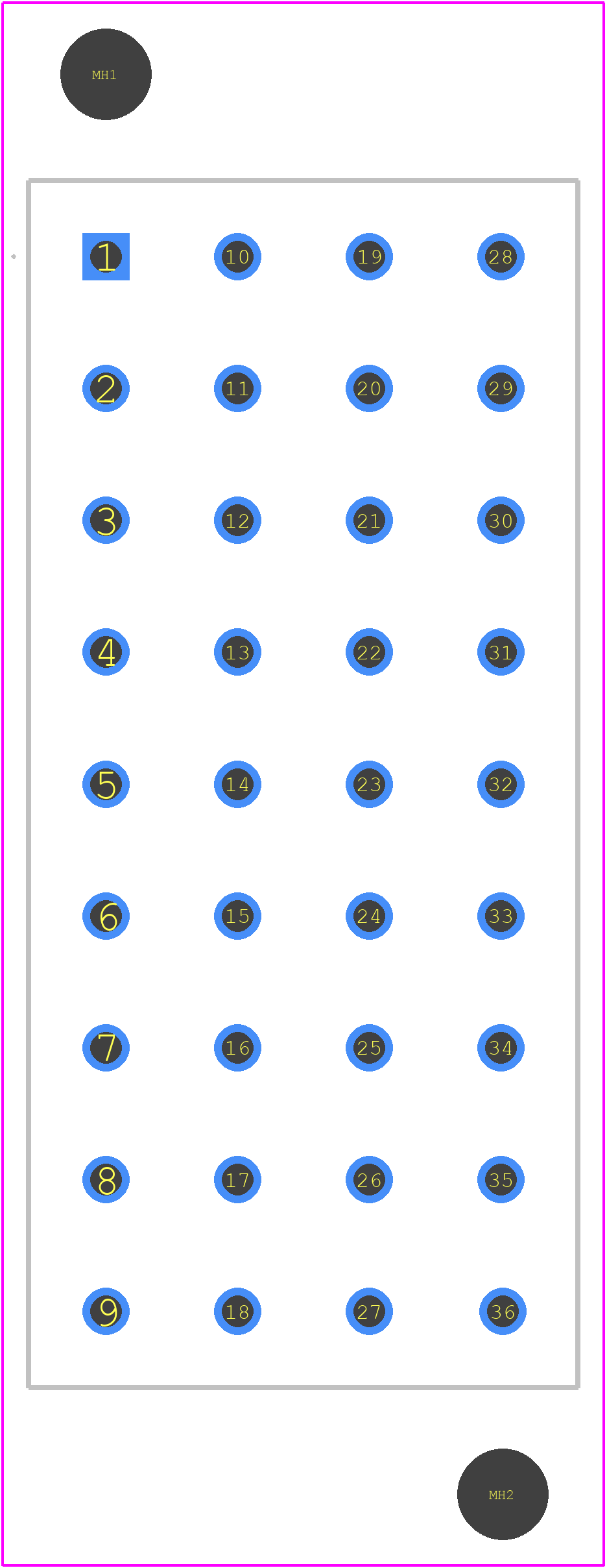

SMS36GE3 - Souriau PCB footprint - Other - Other - SMS36GE3-1
click to zoom
3D Models
SMS36GE3 - Souriau - 3D model - Other - SMS36GE3-1
click to zoom

SMS36GE3 Details

  • Manufacturer Part Number:

    SMS36GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    SOURIAU-SUNBANK

  • Additional Feature:

    POALRIZED; IP40

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    15 A

  • Reference Standard:

    CSA; UL

  • Termination Type:

    CRIMP

  • Total Number of Contacts:

    36

  • UL Flammability Code:

    94V-2

SMS36GE3 Frequently Asked Questions (FAQs)

  • The operating temperature range of the SMS36GE3 connector is -55°C to 150°C, according to the manufacturer's specifications.
  • Yes, the SMS36GE3 connector is designed to withstand high-vibration environments, making it suitable for aerospace, defense, and other applications where vibration is a concern.
  • The SMS36GE3 connector has a mating cycle life of 500 cycles, according to the manufacturer's specifications.
  • Yes, the SMS36GE3 connector is designed to operate in harsh environments, including salt spray and high humidity, making it suitable for applications in marine, aerospace, and other industries.
  • The typical lead time for delivery of the SMS36GE3 connector varies depending on the supplier and the quantity ordered. However, it is typically around 6-12 weeks.
