Part Image

SMS3PHGE4 - Souriau

Description: Souriau SMS Series, 5.08mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 5A

Download SMS3PHGE4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SMS3PHGE4 - Souriau - PCB symbol
click to zoom
PCB Footprints

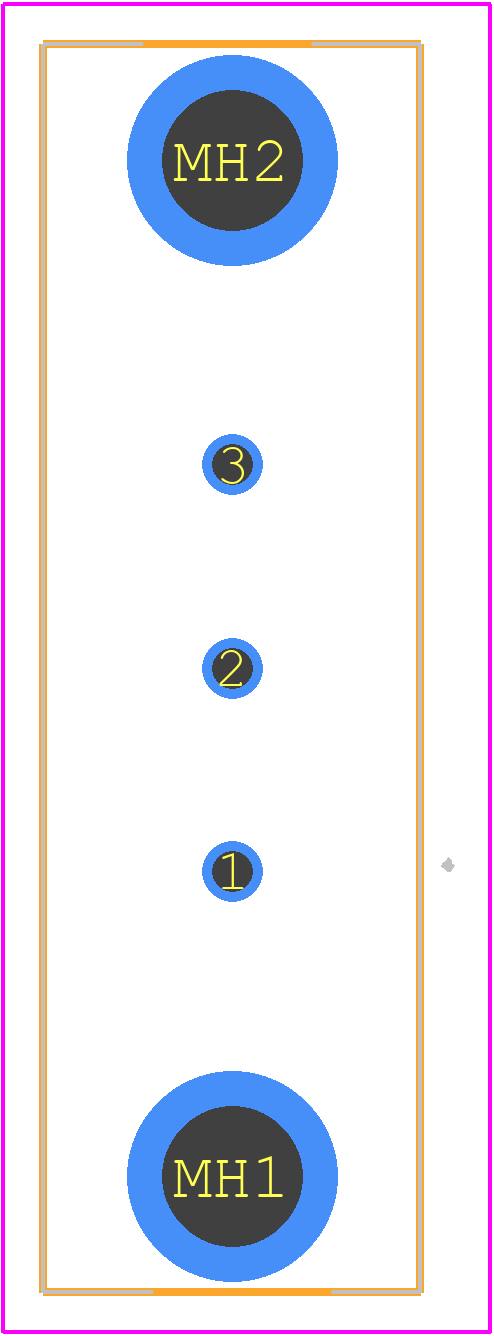

SMS3PHGE4 - Souriau PCB footprint - Other - Other - SMS3PHGE4-1
click to zoom
3D Models
SMS3PHGE4 - Souriau - 3D model - Other - SMS3PHGE4-1
click to zoom

SMS3PHGE4 Details

  • Manufacturer Part Number:

    SMS3PHGE4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    SOURIAU-SUNBANK

  • Additional Feature:

    POALRIZED

  • Body Breadth:

    0.37 inch

  • Body Depth:

    0.901 inch

  • Body Length:

    1.228 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    7.5 A

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

SMS3PHGE4 Frequently Asked Questions (FAQs)

  • The recommended torque for securing the SMS3PHGE4 connector is 0.4 Nm to 0.6 Nm (3.5 in-lbs to 5.3 in-lbs) as per the supplier's guidelines.
  • Yes, the SMS3PHGE4 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 61373 Category 2, making it suitable for use in applications with high vibrations.
  • The SMS3PHGE4 operates in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity up to 95% RH. However, it's essential to ensure proper sealing and protection to maintain its performance in harsh environments.
  • The lead time for delivery of SMS3PHGE4 connectors varies depending on the supplier, quantity, and location. Typically, it ranges from 4 to 12 weeks. It's recommended to check with the supplier or distributor for specific lead times.
  • Yes, it's essential to follow the recommended PCB layout guidelines provided by SOURIAU-SUNBANK to ensure proper connector operation and minimize signal integrity issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SMS3PHGE4 Overview

Use the download button to access the SMS3PHGE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SMS3P, or try a keyword search, such as Combination Line Connectors
