SMS6RE4TR29 - Souriau

Description: Souriau SMS Series, 5.08mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 5A

Download SMS6RE4TR29 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SMS6RE4TR29 - Souriau - PCB symbol
click to zoom
PCB Footprints

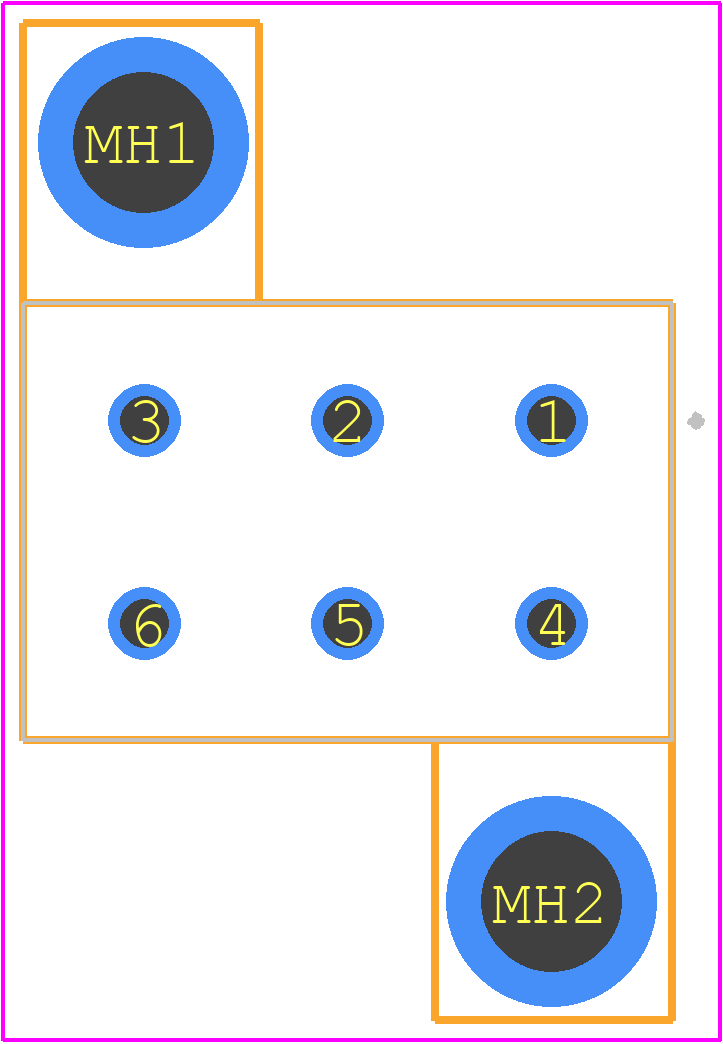

SMS6RE4TR29 - Souriau PCB footprint - Other - Other - SMS6RE4TR29-2
click to zoom
3D Models
SMS6RE4TR29 - Souriau - 3D model - Other - SMS6RE4TR29-2
click to zoom

SMS6RE4TR29 Details

  • Manufacturer Part Number:

    SMS6RE4TR29

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    SOURIAU-SUNBANK

  • YTEOL:

    8

  • Additional Feature:

    POALRIZED; IP40

  • Body Breadth:

    0.629 inch

  • Body Depth:

    0.519 inch

  • Body Length:

    0.756 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    RND PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    7.5 A

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-2

SMS6RE4TR29 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the SMS6RE4TR29 is designed to withstand high-vibration environments, but it's recommended to consult with the manufacturer or a qualified engineer to ensure proper installation and securement.
  • The operating temperature range for the SMS6RE4TR29 is -55°C to 150°C, but derating may be necessary for extreme temperatures or high-frequency applications.
  • The SMS6RE4TR29 has a IP67 rating, making it suitable for use in harsh environments, but it's essential to ensure proper sealing and protection to maintain the rating.
  • The SMS6RE4TR29 is designed for high-reliability applications, but it's not optimized for high-speed data transmission. For high-speed applications, consider using a connector specifically designed for high-frequency signals.
