SMS7630-005LF - Skyworks

Description: Schottky Diodes & Rectifiers Ls=1.5nH SOT-23 Series Pair

Download SMS7630-005LF Model

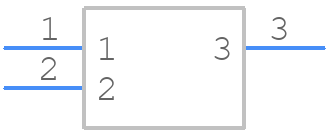

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SMS7630-005LF - Skyworks PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SOT-23
click to zoom

SMS7630-005LF Details

  • Manufacturer Part Number:

    SMS7630-005LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    0

  • Additional Feature:

    LOW NOISE

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

  • Diode Capacitance-Max:

    0.3 pF

  • Diode Element Material:

    SILICON

  • Diode Type:

    MIXER DIODE

  • Forward Voltage-Max (VF):

    0.24 V

  • Frequency Band:

    X BAND

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Output Current-Max:

    0.05 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Dissipation-Max:

    0.075 W

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    1 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Type of Schottky Barrier:

    ZERO BARRIER

SMS7630-005LF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the antenna, and the RF traces should be kept short and 50-ohm matched.
  • The device requires a 2.7V to 5.5V power supply, and the VCC pin should be decoupled with a 100nF capacitor. The EN pin should be tied to VCC or a digital signal for enable/disable control.
  • The device can handle up to 2W of continuous wave (CW) power, but it's recommended to derate the power handling based on the operating frequency and environmental conditions.
  • Check the PCB layout for any impedance mismatches, ensure proper biasing and decoupling, and verify the input/output matching networks. Also, check for any signs of overheating or physical damage.
  • Yes, the device is compatible with lead-free soldering processes, but it's recommended to follow the recommended soldering profile to prevent damage to the device.
