SMZ26GTOD - Econ Connect

Description: SMT Pin header pitch 2.54 mm double row straight 2x13 gold plated w/o cap + peg

Download SMZ26GTOD Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SMZ26GTOD model

Email notifications will be applied after download.

Send part feedback

Symbol

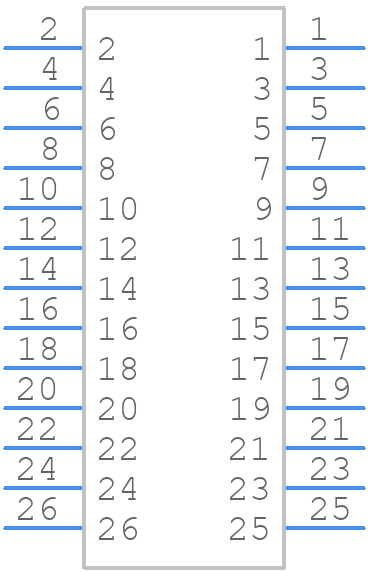

SMZ26GTOD - Econ Connect - PCB symbol

PCB Footprints

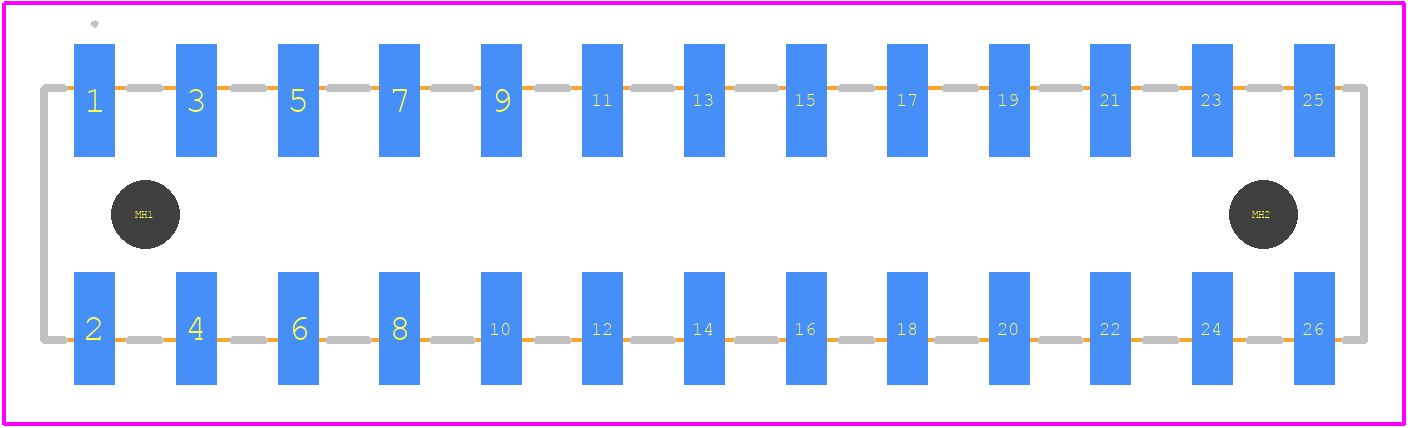

SMZ26GTOD - Econ Connect PCB footprint - Other - Other - SMZ26GTOD-2

3D Models

SMZ26GTOD - Econ Connect - 3D model - Other - SMZ26GTOD-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for SMZ26GTOD
Part Number SMZ26GTOD
Manufacturer Econ Connect
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - SMZ26GTOD-2
Released Date Jan 18, 2024
Last Modified Date Jan 18, 2024 8:30 AM UTC
Pinout / Pin List Click Here (Member Only)

SMZ26GTOD Details

Manufacturer Part Number:
SMZ26GTOD
Manufacturer:
econ connect

Trust Checks

Community Provided

System Verified

Community Approved

SMZ26GTOD Overview

Use the download button to access the SMZ26GTOD schematic symbol, PCB footprint, and 3D model.
