SN10KHT5578DWR - Texas Instruments

Description: Translation - Voltage Levels Octal TTL-To-ECL Translator

Download SN10KHT5578DWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

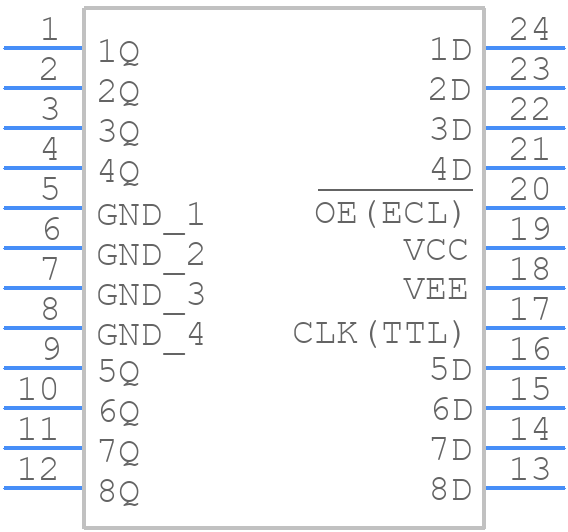

SN10KHT5578DWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN10KHT5578DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G24)
click to zoom
3D Models
SN10KHT5578DWR - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G24)
click to zoom

SN10KHT5578DWR Details

  • Manufacturer Part Number:

    SN10KHT5578DWR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOIC-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Delay-Max:

    4 ns

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    TTL TO ECL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    15.4 mm

  • Number of Bits:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    75 °C

  • Output Characteristics:

    OPEN-EMITTER WITH CUT-OFF

  • Output Latch or Register:

    REGISTER

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    -5.46 V

  • Supply Voltage1-Min:

    -4.94 V

  • Supply Voltage1-Nom:

    -5.2 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.5 mm

SN10KHT5578DWR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
  • To ensure reliable operation at high temperatures, it's essential to follow proper thermal design and layout guidelines, use a heat sink if necessary, and ensure that the device is operated within its specified temperature range. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V to ensure reliable operation and prevent damage to the device.
  • The SN10KHT5578DWR has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded to prevent static damage.
  • The recommended power-up sequence is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the internal voltage regulators and bias circuits are properly initialized before the device starts operating.
