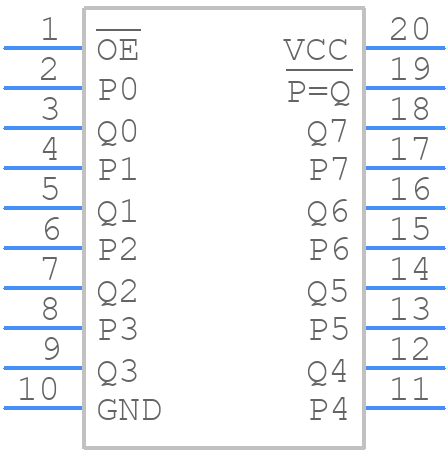

SN54HC688FK - Texas Instruments

SN54HC688FK Details

• Manufacturer Part Number:

  SN54HC688FK

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFN

• Package Description:

  CERAMIC, CC-20

• Pin Count:

  20

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  CASCADABLE

• Family:

  HC/UH

• JESD-30 Code:

  S-CQCC-N20

• Length:

  8.89 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  IDENTITY COMPARATOR

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  INVERTED

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  QCCN

• Package Equivalence Code:

  LCC20,.35SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Power Supply Current-Max (ICC):

  50 mA

• Propagation Delay (tpd):

  313 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.03 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  8.89 mm
