Texas Instruments provides a recommended PCB layout in their application note SLVAE03, which includes guidelines for signal routing, power supply decoupling, and thermal management to ensure optimal performance and minimize signal integrity issues.
The SN54SLC8T245PWTSEP has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal via array or a thermal pad on the PCB can be used to improve heat dissipation. Additionally, ensuring good airflow and using a heat sink can also help to reduce the junction temperature.
The maximum operating frequency for the SN54SLC8T245PWTSEP is 2.5 Gbps, but it can operate at higher frequencies with reduced signal amplitude and increased power consumption. It's recommended to consult the datasheet and application notes for specific frequency and signal integrity requirements.
To ensure signal integrity, it's recommended to follow proper PCB design practices, such as using controlled impedance traces, minimizing signal routing distances, and using signal termination resistors. Additionally, the device's output impedance should be matched to the transmission line impedance to minimize signal reflections.
Texas Instruments recommends using a 0.1 μF ceramic capacitor and a 10 μF electrolytic capacitor in parallel, placed as close as possible to the device's power pins, to decouple the power supply and reduce noise and ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN54SLC8T245PWTSEP Overview

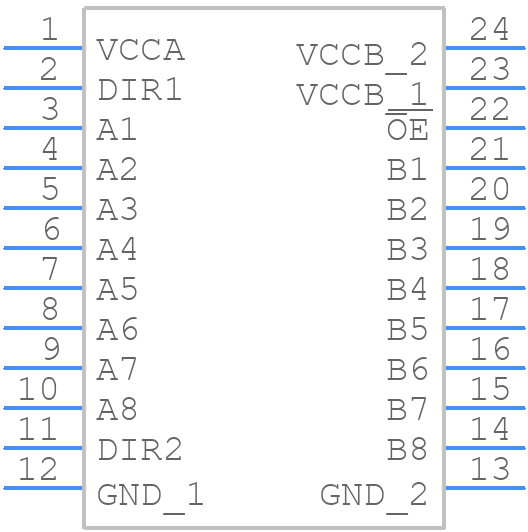

Use the download button to access the SN54SLC8T245PWTSEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN54S,
or try a keyword search, such as Bus Driver/Transceivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
