SN55HVD251DRJR - Texas Instruments

Description: CAN Interface IC Industrial CAN Transceiver

Download SN55HVD251DRJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

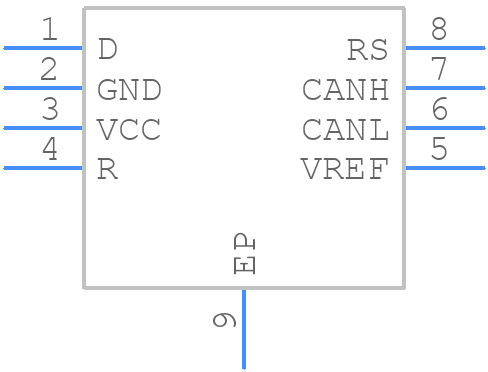

SN55HVD251DRJR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN55HVD251DRJR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRJ (S-PWSON-N8)
click to zoom
3D Models
SN55HVD251DRJR - Texas Instruments - 3D model - Small Outline No-lead - DRJ (S-PWSON-N8)
click to zoom

SN55HVD251DRJR Details

  • Manufacturer Part Number:

    SN55HVD251DRJR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.065 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

SN55HVD251DRJR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the SN55HVD251DRJR is -40°C to 125°C.
  • To ensure reliable operation in high-vibration environments, it is recommended to use a secure mounting method, such as a screw or adhesive, and to follow proper PCB design and layout guidelines to minimize mechanical stress on the device.
  • The recommended PCB layout and routing for the SN55HVD251DRJR involves keeping the signal traces short and direct, using a solid ground plane, and minimizing the use of vias and layer changes to reduce signal reflections and noise.
  • To troubleshoot issues with the SN55HVD251DRJR, start by verifying the power supply voltage and signal integrity, then check for proper PCB layout and routing, and finally, use a logic analyzer or oscilloscope to debug the signal waveforms.
  • Yes, the SN55HVD251DRJR is AEC-Q100 qualified and meets the requirements for use in automotive and industrial safety-critical applications, but it is recommended to consult with a Texas Instruments representative to ensure compliance with specific safety standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN55HVD251DRJR Overview

Use the download button to access the SN55HVD251DRJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN55H, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
