SN65240PW - Texas Instruments

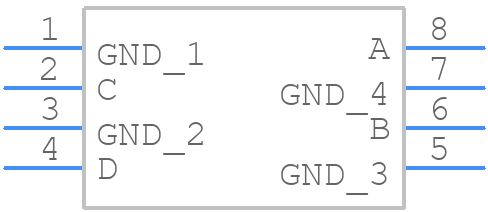

SN65240PW Details

• Manufacturer Part Number:

  SN65240PW

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Pin Count:

  8

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  LOW CAPACITANCE

• Breakdown Voltage-Max:

  8 V

• Breakdown Voltage-Min:

  6.5 V

• Breakdown Voltage-Nom:

  7 V

• Clamping Voltage-Max:

  14 V

• Configuration:

  2 BANKS, COMMON ANODE, 2 ELEMENTS, 4 CHANNEL

• Diode Element Material:

  SILICON

• Diode Type:

  TRANS VOLTAGE SUPPRESSOR DIODE

• JEDEC-95 Code:

  MO-153AA

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e4

• Moisture Sensitivity Level:

  1

• Non-rep Peak Rev Power Dis-Max:

  60 W

• Number of Elements:

  4

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity:

  UNIDIRECTIONAL

• Reference Standard:

  IEC-61000-4-2

• Rep Pk Reverse Voltage-Max:

  6 V

• Reverse Current-Max:

  0.05 µA

• Reverse Test Voltage:

  5.5 V

• Surface Mount:

  YES

• Technology:

  AVALANCHE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30
