The maximum cable length supported by the SN65DP149RSBR is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 100 Mbps.
The SN65DP149RSBR is a highly configurable device, and the configuration depends on the specific application requirements. TI provides a configuration tool, the DP149 Configurator, which can be used to generate the configuration code for the device. Additionally, the device datasheet and application notes provide detailed information on how to configure the device for specific applications.
The power consumption of the SN65DP149RSBR depends on the specific application and the operating mode. However, according to the datasheet, the typical power consumption is around 150 mW at a data rate of 100 Mbps. It's recommended to refer to the datasheet and application notes for more detailed information on power consumption.
Yes, the SN65DP149RSBR is compatible with other DisplayPort (DP) devices that comply with the VESA DisplayPort standard. However, it's recommended to verify the compatibility of the specific devices and systems to ensure proper operation.
TI provides a range of tools and resources to help troubleshoot issues with the SN65DP149RSBR, including application notes, FAQs, and a support forum. Additionally, the device datasheet provides detailed information on troubleshooting common issues. It's recommended to start by reviewing the datasheet and application notes, and then contacting TI support if further assistance is needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65DP149RSBR Overview

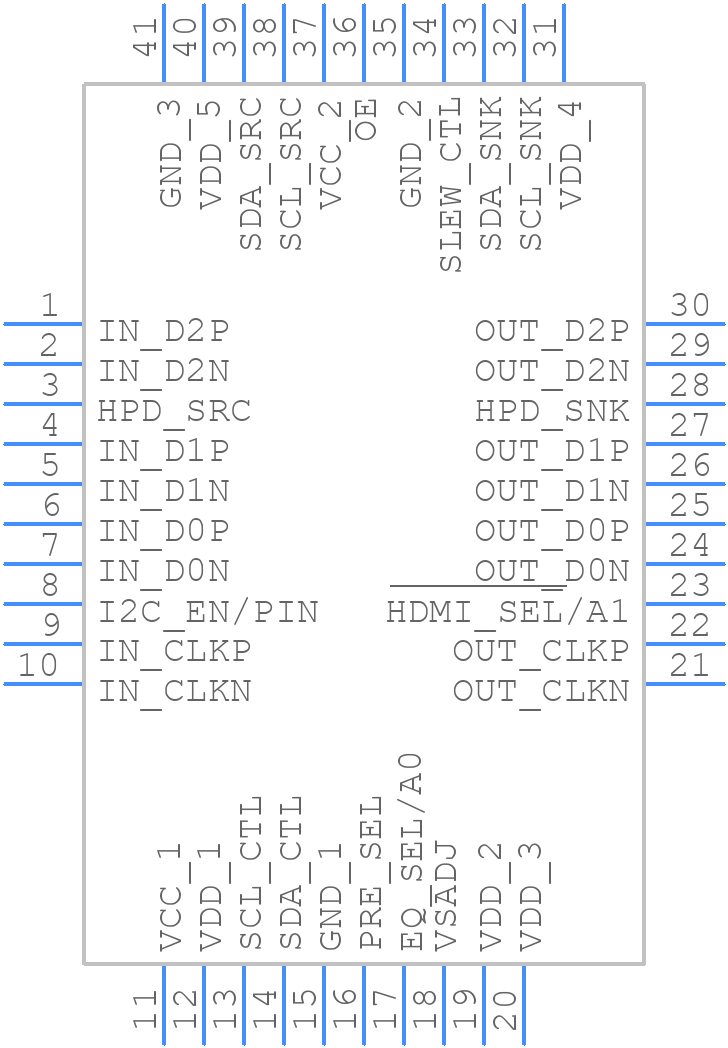

Use the download button to access the SN65DP149RSBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65D,
or try a keyword search, such as Level Translators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
