SN65DP159RGZR - Texas Instruments

Description: 6 Gbps DP++ to HDMI Retimer

Download SN65DP159RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

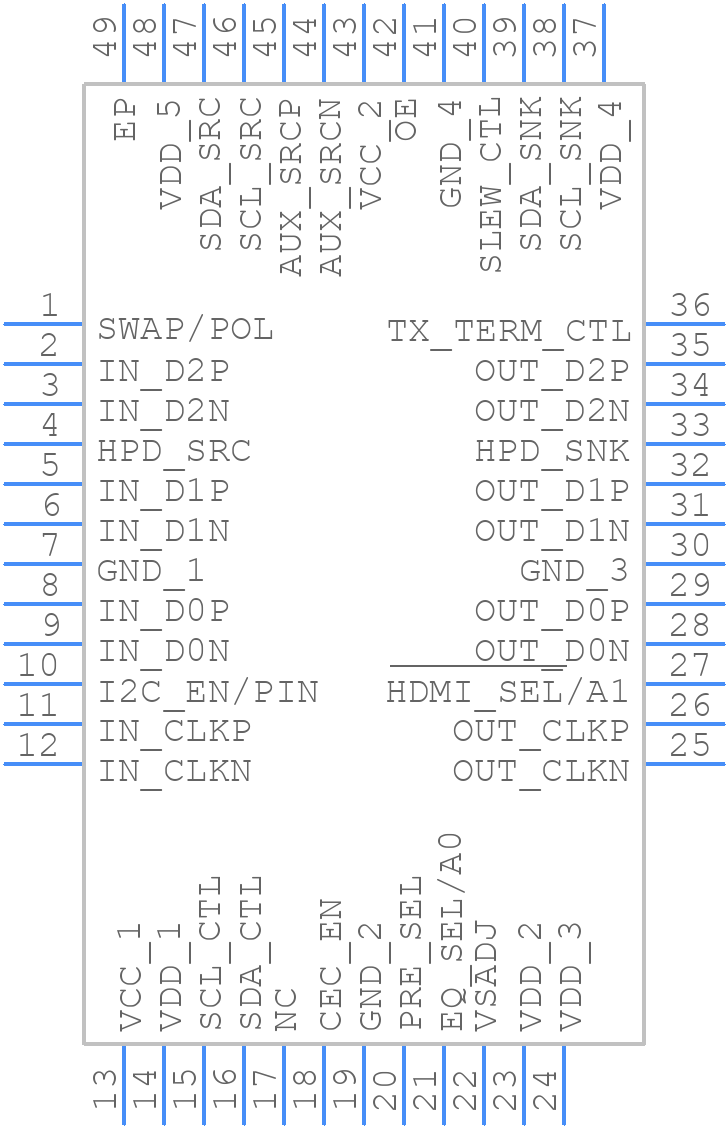

SN65DP159RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65DP159RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ-ren1
click to zoom
3D Models
SN65DP159RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ-ren1
click to zoom

SN65DP159RGZR Details

  • Manufacturer Part Number:

    SN65DP159RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES WITH A 3.3V SUPPLY

  • Interface IC Type:

    RETIMER

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.27 V

  • Supply Voltage-Min:

    1 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

SN65DP159RGZR Frequently Asked Questions (FAQs)

  • The SN65DP159RGZR can support data rates up to 6 Gbps.
  • To configure the SN65DP159RGZR for HDMI 2.0 applications, you need to set the device to HDMI mode by pulling the MODE pin high. Additionally, you need to configure the device for 6 Gbps operation by setting the SPEED pin to the appropriate level.
  • The power consumption of the SN65DP159RGZR depends on the operating mode and data rate. In HDMI mode, the typical power consumption is around 250 mW at 3.3 V and 6 Gbps. In DP mode, the typical power consumption is around 200 mW at 3.3 V and 5.4 Gbps.
  • To implement a reliable HPD circuit with the SN65DP159RGZR, you need to connect the HPD pin to a voltage divider circuit that detects the presence of a plug. The voltage divider circuit should be designed to provide a logic-high signal to the HPD pin when a plug is present and a logic-low signal when no plug is present.
  • To ensure reliable operation of the SN65DP159RGZR, it is recommended to follow the PCB layout guidelines provided in the datasheet, including using a solid ground plane, minimizing trace lengths and impedance, and using decoupling capacitors to reduce noise and jitter.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN65DP159RGZR Overview

Use the download button to access the SN65DP159RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65D, or try a keyword search, such as Other Interface ICs
