The maximum cable length supported by the SN65ELT20DGK depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 1 Gbps.
To ensure signal integrity and minimize EMI, it is recommended to follow proper PCB layout and design guidelines, such as using differential pairs, minimizing trace lengths, and using shielding and grounding techniques. Additionally, the use of common-mode chokes and EMI filters can also help to reduce EMI.
The power consumption of the SN65ELT20DGK depends on the specific application and operating conditions. However, the device has a typical power consumption of around 150 mW. To optimize power consumption for low-power applications, it is recommended to use the device's low-power mode, reduce the clock frequency, and use power-saving features such as automatic power-down.
To troubleshoot issues with the SN65ELT20DGK, it is recommended to use a combination of tools and techniques, such as oscilloscopes, logic analyzers, and signal generators. Additionally, checking the device's datasheet and application notes, as well as consulting with Texas Instruments' technical support, can also be helpful in identifying and resolving issues.
The SN65ELT20DGK is rated for operation over a temperature range of -40°C to 85°C. However, the device can be used in high-temperature applications up to 125°C with some derating of the device's performance. It is recommended to consult the device's datasheet and application notes for more information on high-temperature operation.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN65ELT20DGK Overview

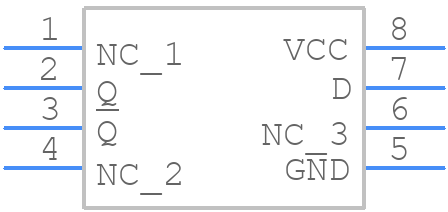

Use the download button to access the SN65ELT20DGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65E,
or try a keyword search, such as Clock Drivers
