SN65HVD102RGBT - Texas Instruments

Description: IO-LINK PHY for Device Nodes

Download SN65HVD102RGBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

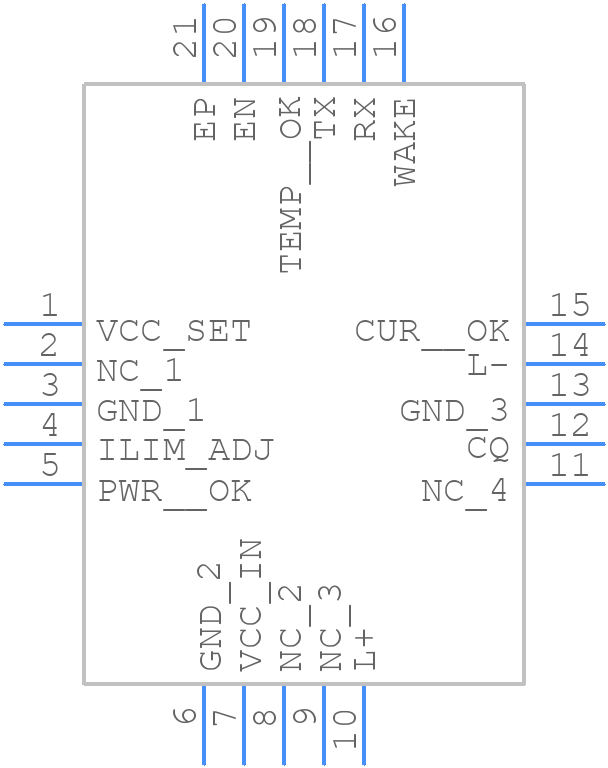

SN65HVD102RGBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65HVD102RGBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGB
click to zoom
3D Models
SN65HVD102RGBT - Texas Instruments - 3D model - Quad Flat No-Lead - RGB
click to zoom

SN65HVD102RGBT Details

  • Manufacturer Part Number:

    SN65HVD102RGBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    SUPPORT CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

SN65HVD102RGBT Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65HVD102RGBT is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at a data rate of 100 Mbps.
  • To ensure signal integrity with the SN65HVD102RGBT, it is recommended to follow proper PCB layout and design guidelines, such as using differential pairs, minimizing trace lengths, and using shielding and grounding techniques to reduce electromagnetic interference (EMI).
  • The power consumption of the SN65HVD102RGBT is typically around 150 mW (typical) and 250 mW (maximum) at a supply voltage of 3.3 V and a data rate of 100 Mbps.
  • Yes, the SN65HVD102RGBT is rated for operation over an industrial temperature range of -40°C to 85°C, making it suitable for use in industrial and automotive applications.
  • The SN65HVD102RGBT can be configured for half-duplex or full-duplex operation by setting the mode pins (MODE[1:0]) accordingly. For half-duplex operation, set MODE[1:0] = 00, and for full-duplex operation, set MODE[1:0] = 01 or 10.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN65HVD102RGBT Overview

Use the download button to access the SN65HVD102RGBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65H, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
