SN65HVD1050DR - Texas Instruments

Description: High-Speed CAN Transceiver with Silent Mode

Download SN65HVD1050DR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

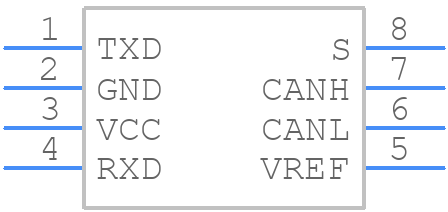

SN65HVD1050DR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65HVD1050DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
SN65HVD1050DR - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

SN65HVD1050DR Details

  • Manufacturer Part Number:

    SN65HVD1050DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.07 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SN65HVD1050DR Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65HVD1050DR is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at a data rate of 100 Mbps.
  • The SN65HVD1050DR has a common-mode voltage range of -7V to 12V, which allows it to operate in noisy environments with high levels of electromagnetic interference (EMI). The device also has a built-in common-mode filter to help reject common-mode noise.
  • The power consumption of the SN65HVD1050DR is typically around 150 mW at a supply voltage of 3.3V and a data rate of 100 Mbps. However, this can vary depending on the specific application and operating conditions.
  • Yes, the SN65HVD1050DR is compatible with other RS-485 transceivers that comply with the EIA/TIA-485 standard. However, it's always recommended to verify compatibility with specific devices and systems before deployment.
  • The SN65HVD1050DR has a built-in bus contention resolution mechanism that allows it to handle multiple devices transmitting on the bus simultaneously. The device uses a non-destructive bitwise OR operation to resolve bus contention.
