SN65HVD1050DRG4 - Texas Instruments

Description: CAN Interface IC High Speed EMC Opt CAN Transceiver

Download SN65HVD1050DRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

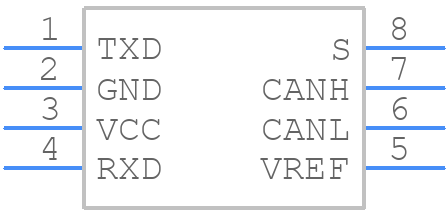

Symbol
SN65HVD1050DRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65HVD1050DRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D(R-PDSO-G)
click to zoom
3D Models
SN65HVD1050DRG4 - Texas Instruments - 3D model - Small Outline Packages - D(R-PDSO-G)
click to zoom

SN65HVD1050DRG4 Details

  • Manufacturer Part Number:

    SN65HVD1050DRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia, Taiwan

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.07 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SN65HVD1050DRG4 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65HVD1050DRG4 is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at a data rate of 1 Mbps.
  • To ensure signal integrity and minimize EMI, it is recommended to use a shielded cable, keep the cable length as short as possible, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Additionally, proper PCB layout and grounding techniques should be followed to minimize radiation and coupling.
  • The recommended termination scheme for the SN65HVD1050DRG4 is a 120-ohm differential termination resistor at the receiving end of the bus. This helps to match the impedance of the cable and reduce reflections.
  • Yes, the SN65HVD1050DRG4 can be used in a multi-point configuration, but it requires the use of a repeater or a hub to connect multiple nodes. The device can support up to 32 nodes on a single bus.
  • The SN65HVD1050DRG4 supports data rates of up to 1 Mbps, making it suitable for a wide range of industrial and automotive applications.
