SN65HVDA100QDRQ1 - Texas Instruments

Description: LIN Physical Interface

Download SN65HVDA100QDRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

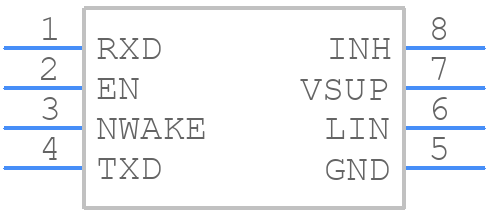

SN65HVDA100QDRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65HVDA100QDRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC-ren5
click to zoom
3D Models
SN65HVDA100QDRQ1 - Texas Instruments - 3D model - Small Outline Packages - 8-Pin SOIC-ren5
click to zoom

SN65HVDA100QDRQ1 Details

  • Manufacturer Part Number:

    SN65HVDA100QDRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    20 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.775 mA

  • Supply Voltage-Nom:

    14 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SN65HVDA100QDRQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65HVDA100QDRQ1 is approximately 100 meters, depending on the cable quality and the specific application.
  • To ensure EMC with the SN65HVDA100QDRQ1, follow proper PCB layout and design guidelines, use shielding and grounding techniques, and consider using common-mode chokes or filters to reduce electromagnetic interference (EMI).
  • The recommended operating temperature range for the SN65HVDA100QDRQ1 is -40°C to 125°C, but it can operate up to 150°C for short periods of time.
  • To troubleshoot issues with the SN65HVDA100QDRQ1, check the power supply voltage, signal integrity, and cable connections. Use oscilloscopes or logic analyzers to debug signal issues, and consult the datasheet and application notes for guidance.
  • Yes, the SN65HVDA100QDRQ1 can be used in redundant or fault-tolerant systems, but additional circuitry and design considerations are required to ensure seamless switchover in case of failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN65HVDA100QDRQ1 Overview

Use the download button to access the SN65HVDA100QDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65H, or try a keyword search, such as Network Interfaces
