SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
34 V
Supply Voltage-Min:
10 V
Supply Voltage-Nom:
24 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
SN65HVS883PWPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of termination resistors depends on the specific application and the transmission line impedance. Texas Instruments recommends using a termination resistor value that matches the transmission line impedance, typically 50 ohms or 75 ohms. The application note SLVAE04 provides more detailed guidance on termination resistor selection.
The maximum cable length supported by the SN65HVS883PWPR depends on the specific application and the transmission line characteristics. In general, the device can support cable lengths up to 100 meters or more, but this may require additional signal conditioning and equalization. Texas Instruments recommends consulting the application note SLVAE04 for more information on cable length limitations.
To ensure EMC with the SN65HVS883PWPR, follow the guidelines in the application note SLVAE04, which includes recommendations for PCB layout, component selection, and shielding. Additionally, Texas Instruments recommends using a common-mode choke and a shielded cable to minimize electromagnetic radiation.
The power consumption of the SN65HVS883PWPR depends on the specific application and the operating conditions. According to the datasheet, the typical power consumption is around 150 mW, but this can vary depending on the transmission rate, cable length, and other factors. Texas Instruments recommends consulting the datasheet and application notes for more detailed information on power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65HVS883PWPR Overview

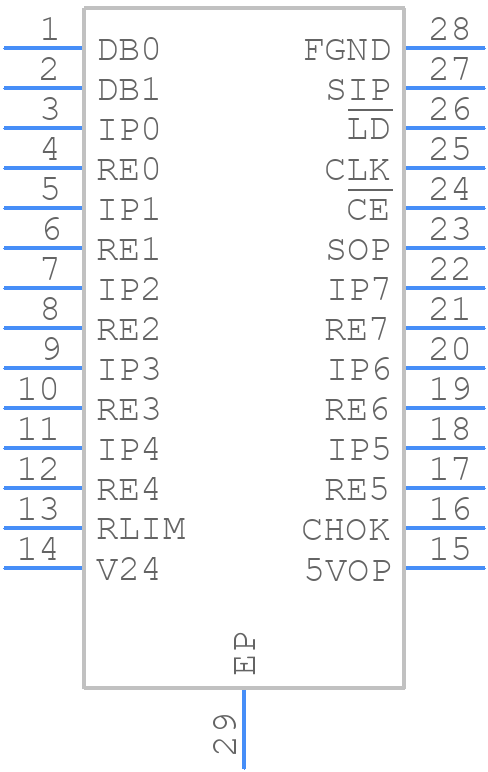

Use the download button to access the SN65HVS883PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65H,
or try a keyword search, such as Other Interface ICs
