SN65HVS885PWP - Texas Instruments

Description: 8-input, wide 0- to 34-V digital-input serializer with 5-V VCC for industrial digital inputs

Download SN65HVS885PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

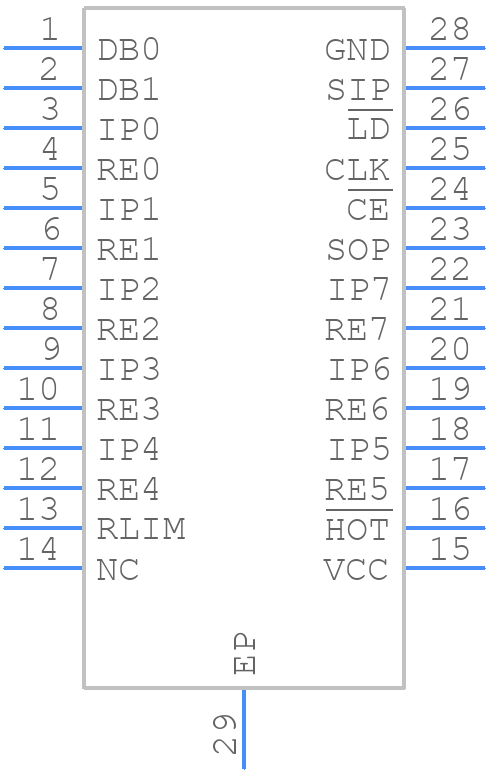

Symbol
SN65HVS885PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65HVS885PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - htssop-29-ren1
click to zoom
3D Models
SN65HVS885PWP - Texas Instruments - 3D model - Small Outline Packages - htssop-29-ren1
click to zoom

SN65HVS885PWP Details

  • Manufacturer Part Number:

    SN65HVS885PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

SN65HVS885PWP Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65HVS885PWP is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at a data rate of 100 Mbps.
  • The SN65HVS885PWP has a built-in common-mode filter that helps to reject common-mode voltage noise. Additionally, the device has a high common-mode rejection ratio (CMRR) of 100 dB, which helps to minimize the effects of common-mode voltage on the signal.
  • The SN65HVS885PWP supports data rates of up to 100 Mbps, making it suitable for high-speed industrial Ethernet applications.
  • Yes, the SN65HVS885PWP is compatible with other Ethernet physical layer devices that comply with the IEEE 802.3 standard. However, it's recommended to verify compatibility with specific devices before use.
  • The SN65HVS885PWP is designed to support PoE applications and can detect and classify PoE devices. It also has built-in protection against overcurrent and overvoltage conditions.
