CONFIGURABLE AS 2:1 MUX, 1:2 DEMUX, REPEATER OR 1:2 SIGNAL SPLITTER
Analog IC - Other Type:
CROSS POINT SWITCH
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
0.087 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Switch-off Time-Max:
4 ns
Switch-on Time-Max:
4 ns
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
SN65LVCP22PWR Frequently Asked Questions (FAQs)
The maximum cable length supported by the SN65LVCP22PWR depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 100 Mbps.
To ensure signal integrity when using the SN65LVCP22PWR, it is recommended to follow proper PCB design and layout practices, such as using differential pairs, minimizing trace lengths, and avoiding noise sources. Additionally, using a common-mode filter or a shielded cable can help to reduce electromagnetic interference (EMI).
Yes, the SN65LVCP22PWR can be used in a multi-point configuration, but it is limited to a maximum of 32 nodes. The device supports multiple transmitters and receivers, but the total number of nodes should not exceed 32.
The power consumption of the SN65LVCP22PWR depends on the operating mode and the data rate. In typical operating conditions, the device consumes around 150 mA at 3.3 V. However, this value can vary depending on the specific application and the operating conditions.
The SN65LVCP22PWR is a IEEE 1394b-compliant PHY device, and it is compatible with other IEEE 1394b-compliant devices. However, compatibility with other PHY devices may depend on the specific application and the operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LVCP22PWR Overview

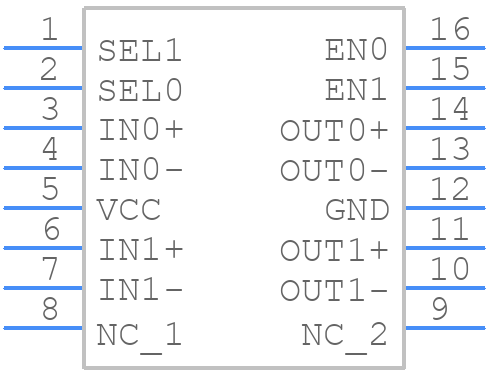

Use the download button to access the SN65LVCP22PWR schematic symbol, PCB footprint, and 3D model.
