SN65LVDS125ADBTR - Texas Instruments

Description: Analog & Digital Crosspoint ICs 4x4 1.5 Gbps LVDS Crosspoint Switch

Download SN65LVDS125ADBTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

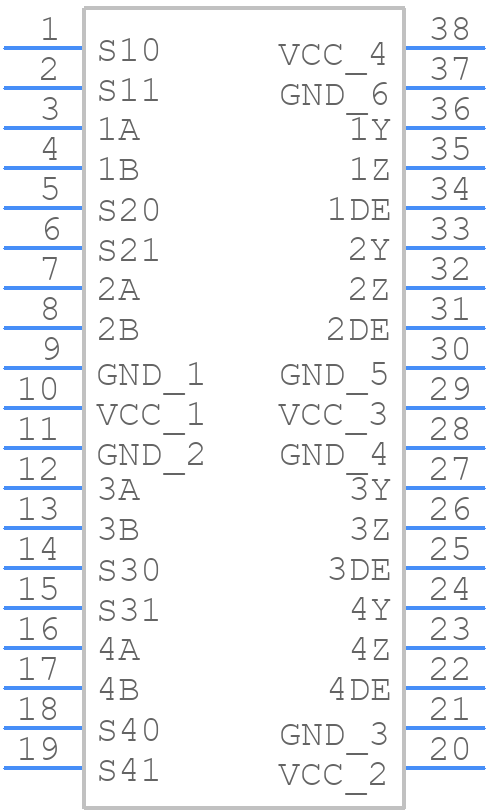

SN65LVDS125ADBTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65LVDS125ADBTR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT0038A
click to zoom
3D Models
SN65LVDS125ADBTR - Texas Instruments - 3D model - Small Outline Packages - DBT0038A
click to zoom

SN65LVDS125ADBTR Details

  • Manufacturer Part Number:

    SN65LVDS125ADBTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-38

  • Pin Count:

    38

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    0.145 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    6 ns

  • Switch-on Time-Max:

    300 ns

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

SN65LVDS125ADBTR Frequently Asked Questions (FAQs)

  • The maximum cable length depends on the specific application and the signal frequency. As a general rule, the maximum cable length for LVDS signals is around 10-15 meters. However, it's recommended to consult the TI application note 'LVDS Owner's Manual' (SLMA002) for more detailed information on cable length and signal integrity.
  • The LVDS outputs of the SN65LVDS125ADBTR should be terminated with a 100-ohm differential load to ensure proper signal integrity. This can be achieved using a 100-ohm resistor between the positive and negative outputs of each channel.
  • Yes, the SN65LVDS125ADBTR can operate with a 3.3V power supply. However, the device's output voltage swing will be reduced, which may affect the signal integrity. It's recommended to consult the datasheet and application notes for more information on power supply voltage and output voltage swing.
  • The SN65LVDS125ADBTR has a thermal pad on the bottom of the package that should be connected to a thermal ground plane on the PCB to ensure proper heat dissipation. It's recommended to follow the thermal design guidelines provided in the TI application note 'Thermal Design By Example' (SLMA004).
  • The SN65LVDS125ADBTR is rated for operation up to 85°C. However, the device's performance and reliability may be affected at higher temperatures. It's recommended to consult the datasheet and application notes for more information on operating temperature range and thermal design considerations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN65LVDS125ADBTR Overview

Use the download button to access the SN65LVDS125ADBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65L, or try a keyword search, such as Multiplexers or Switches

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
