The maximum cable length depends on the specific application and the signal frequency. As a general rule, the maximum cable length for LVDS signals is around 10-15 meters. However, it's recommended to consult the TI application notes and perform signal integrity simulations to determine the optimal cable length for a specific design.
The SN65LVDS250DBTR has internal 100-ohm differential termination resistors, so no external termination resistors are required. However, it's recommended to add a 100-ohm differential termination resistor at the receiver end to ensure signal integrity and minimize reflections.
The power consumption of the SN65LVDS250DBTR depends on the operating frequency and the supply voltage. According to the datasheet, the typical power consumption is around 150 mW at 3.3 V and 100 MHz. However, it's recommended to consult the datasheet and perform power consumption calculations based on the specific application requirements.
No, the SN65LVDS250DBTR is designed to operate with a 3.3-V supply voltage. Using a 5-V supply voltage may damage the device or affect its performance. It's recommended to use a 3.3-V supply voltage or a voltage regulator to ensure reliable operation.
To ensure signal integrity with the SN65LVDS250DBTR, it's recommended to follow proper PCB design guidelines, such as using differential pairs, minimizing trace length and impedance mismatches, and adding signal termination resistors. Additionally, it's recommended to perform signal integrity simulations and testing to validate the design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LVDS250DBTR Overview

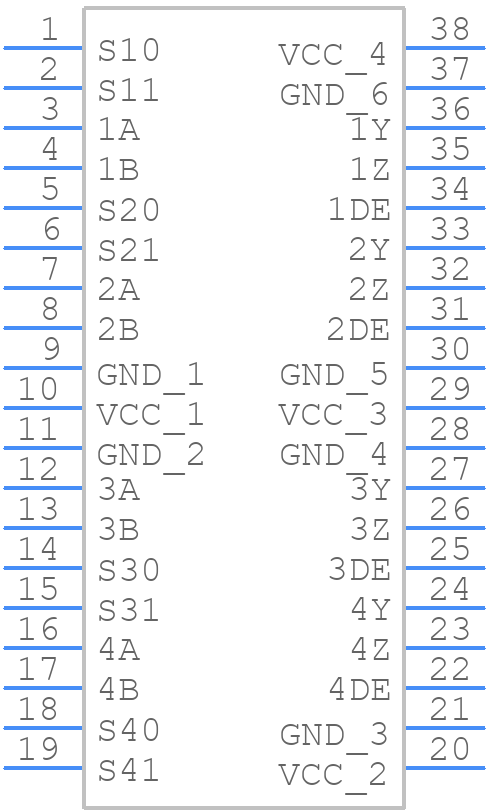

Use the download button to access the SN65LVDS250DBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65L,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
