Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The thermal shutdown feature is designed to protect the device from overheating. When the junction temperature exceeds 150°C, the device will shut down. To handle this, ensure proper thermal management, such as providing adequate heat sinking and airflow, and monitoring the device temperature using the TSD pin.
The maximum cable length supported by the SN65LVDT250DBTR depends on the specific application and the type of cable used. As a general guideline, Texas Instruments recommends keeping the cable length below 100 meters to ensure reliable data transmission. However, longer cable lengths may be possible with proper cable selection and termination.
Texas Instruments provides a troubleshooting guide in the application note SLVAE03, which covers common issues and their solutions, including data transmission errors, device malfunction, and thermal shutdown. Additionally, engineers can use tools such as oscilloscopes and logic analyzers to debug the system and identify the root cause of the issue.
The recommended power sequencing is to power up the VCC supply before the VEE supply. The supply voltage requirements are VCC = 3.3V ± 10% and VEE = -3.3V ± 10%. Ensure that the power supplies are stable and well-regulated to prevent device malfunction or damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LVDT250DBTR Overview

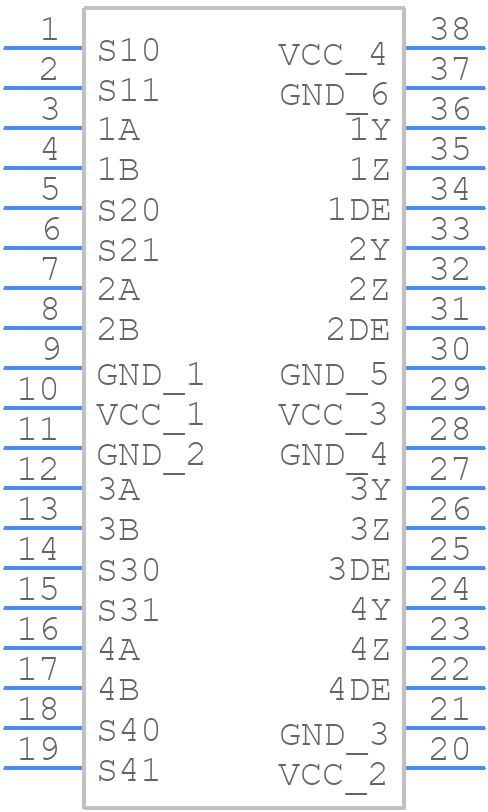

Use the download button to access the SN65LVDT250DBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65L,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
