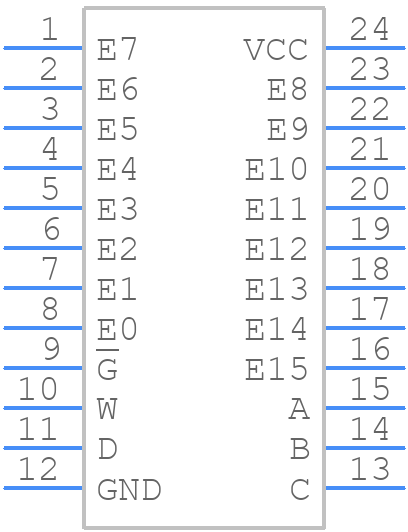

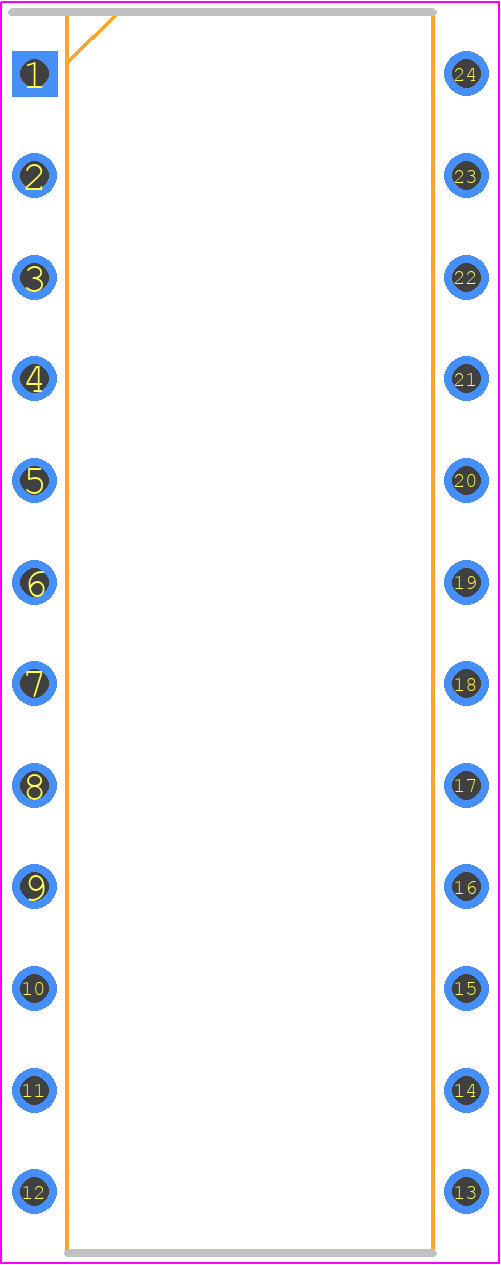

SN74150N - Texas Instruments

SN74150N Details

• Manufacturer Part Number:

  SN74150N

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  ROHS COMPLIANT, PLASTIC, DIP-24

• Pin Count:

  24

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  SN54S15J, SNJ54S15J THIS PARTS ARE REMOVED BECAUSE OF LEAF CLASS ISSUE

• Family:

  TTL/H/L

• JESD-30 Code:

  R-PDIP-T24

• JESD-609 Code:

  e4

• Length:

  31.75 mm

• Load Capacitance (CL):

  15 pF

• Logic IC Type:

  MULTIPLEXER

• Max I(ol):

  0.016 A

• Number of Functions:

  1

• Number of Inputs:

  16

• Number of Outputs:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  70 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Power Supply Current-Max (ICC):

  68 mA

• Prop. Delay@Nom-Sup:

  20 ns

• Propagation Delay (tpd):

  20 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  TTL

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm
