SN74154DW - Texas Instruments

Description: Encoders, Decoders, Multiplexers & Demultiplexers 4-Line To 16-Line Decoders/Demultiplexers 24-SOIC 0 to 70

Download SN74154DW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

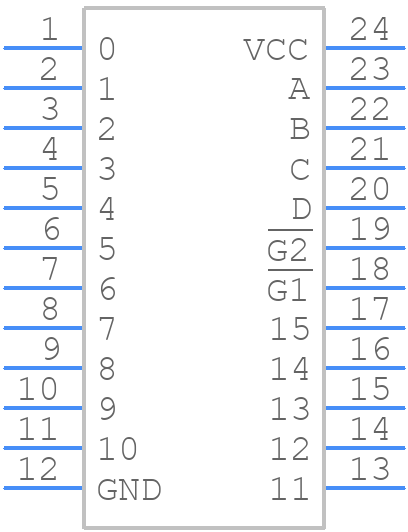

SN74154DW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74154DW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G24)
click to zoom
3D Models
SN74154DW - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G24)
click to zoom

SN74154DW Details

  • Manufacturer Part Number:

    SN74154DW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Family:

    TTL/H/L

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    15.4 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    4-LINE TO 16-LINE DECODER

  • Max I(ol):

    0.016 A

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SO(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Supply Current-Max (ICC):

    56 mA

  • Prop. Delay@Nom-Sup:

    36 ns

  • Propagation Delay (tpd):

    36 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

SN74154DW Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the SN74154DW is 100 MHz, but it can vary depending on the operating conditions and the quality of the clock signal.
  • To ensure proper power and decoupling, use a 5V power supply, decouple the VCC pin with a 0.1uF ceramic capacitor, and use a 10uF electrolytic capacitor for bulk decoupling. Also, ensure that the power supply is clean and free of noise.
  • The maximum input voltage that the SN74154DW can tolerate is 5.5V, but it's recommended to keep the input voltage within the recommended operating range of 4.5V to 5.5V to ensure reliable operation.
  • During power-up and power-down, it's recommended to keep the OE pin in a high-impedance state (i.e., disconnected or pulled up to VCC) to prevent unwanted output transitions. Once the power supply is stable, the OE pin can be driven low to enable the outputs.
  • The recommended termination scheme for the SN74154DW outputs is to use a 50-ohm pull-up resistor to VCC for each output, and a 50-ohm series resistor in series with each output to prevent ringing and reflections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74154DW Overview

Use the download button to access the SN74154DW schematic symbol, PCB footprint, and 3D model.
