SN74154N - Texas Instruments

Description: 4-16line decoder/demux,SN74154N DIL24

Download SN74154N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

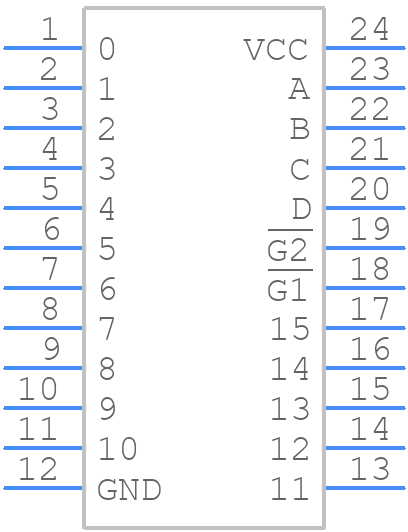

SN74154N - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

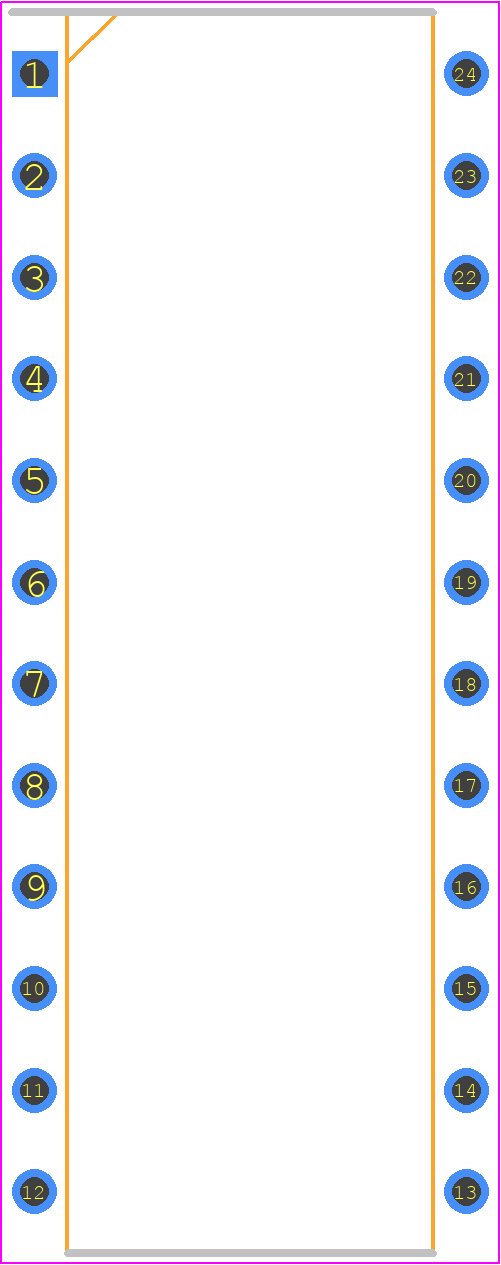

SN74154N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R–PDIP–T24)
click to zoom
3D Models
SN74154N - Texas Instruments - 3D model - Dual-In-Line Packages - N (R–PDIP–T24)
click to zoom

SN74154N Details

  • Manufacturer Part Number:

    SN74154N

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Family:

    TTL/H/L

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e4

  • Length:

    31.75 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    4-LINE TO 16-LINE DECODER

  • Max I(ol):

    0.016 A

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    OPEN-EMITTER

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power Supply Current-Max (ICC):

    56 mA

  • Prop. Delay@Nom-Sup:

    36 ns

  • Propagation Delay (tpd):

    36 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

SN74154N Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the SN74154N is typically 40 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range (-40°C to 85°C).
  • The recommended power-on sequence for the SN74154N is to apply power to the VCC pin first, followed by the input signals. This helps to prevent latch-up and ensures reliable operation.
  • To handle bus contention in a multi-master bus system, it is recommended to use a bus arbiter or a bus controller to manage access to the bus and prevent data corruption. Additionally, using a bus buffer or a bus repeater can help to improve signal integrity and reduce the risk of bus contention.
  • The maximum capacitive load that the SN74154N can drive is typically 100 pF, but this can vary depending on the specific application and operating conditions. It is recommended to consult the datasheet and application notes for more information.
