SN74265N - Texas Instruments

Description: Logic Gates Quadruple Complementary-Output Elements 16-PDIP 0 to 70

Download SN74265N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

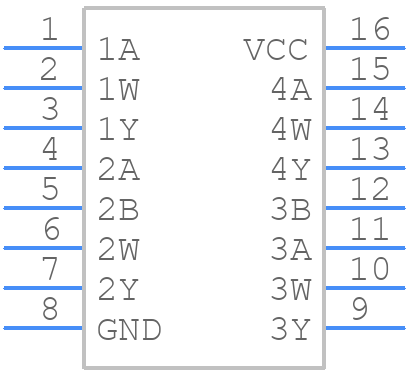

Symbol
SN74265N - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74265N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom
3D Models
SN74265N - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom

SN74265N Details

  • Manufacturer Part Number:

    SN74265N

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, MS-001BB, DIP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    MIXED WITH 2 INVERTERS/NON-INVERTERS

  • Family:

    TTL/H/L

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    19.305 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    AND/NAND GATE

  • Max I(ol):

    0.016 A

  • Number of Functions:

    2

  • Number of Inputs:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Supply Current-Max (ICC):

    34 mA

  • Prop. Delay@Nom-Sup:

    18 ns

  • Propagation Delay (tpd):

    18 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

SN74265N Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the SN74265N is 100 MHz, but it can operate up to 150 MHz with a reduced voltage supply (VCC) of 4.5V.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material, and keeping the junction temperature (TJ) below 150°C.
  • The recommended power-on sequence for the SN74265N is to apply the power supply voltage (VCC) before applying the clock signal. This ensures that the internal circuitry is properly initialized and reduces the risk of latch-up or other malfunction.
  • Yes, the SN74265N can operate in a 3.3V system, but it's essential to ensure that the input signals are compatible with the 3.3V logic levels. Additionally, the output voltage levels may not be compatible with 3.3V systems, so proper level shifting or voltage translation may be required.
  • The asynchronous reset input (CLR) should be asserted low to reset the device. It's essential to ensure that the CLR signal is synchronized with the clock signal to avoid metastability issues. Additionally, the CLR signal should be held low for at least one clock cycle to ensure a complete reset.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74265N Overview

Use the download button to access the SN74265N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN742, or try a keyword search, such as Gates

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
