SN7454N - Texas Instruments

Description: Logic Gates 4-Wide AND-OR-invert Gates 14-PDIP 0 to 70

Download SN7454N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

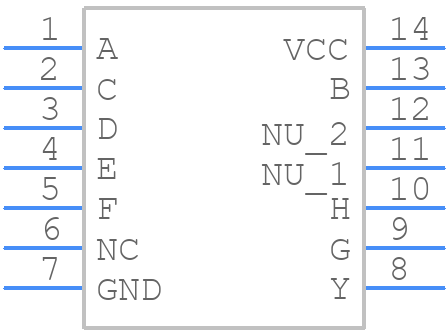

Symbol
SN7454N - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN7454N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom
3D Models
SN7454N - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom

SN7454N Details

  • Manufacturer Part Number:

    SN7454N

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    2-2-2-2 INPUT

  • Family:

    TTL/H/L

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.305 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    AND-OR-INVERT GATE

  • Number of Functions:

    1

  • Number of Inputs:

    8

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Supply Current-Max (ICC):

    9.5 mA

  • Propagation Delay (tpd):

    15 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

SN7454N Frequently Asked Questions (FAQs)

  • The SN7454N can operate from -40°C to 125°C, but the recommended operating temperature range is -40°C to 85°C for optimal performance.
  • To ensure reliable operation in high-noise environments, use proper PCB layout techniques, decouple the power supply with capacitors, and consider using a shielded enclosure. Additionally, ensure that the input signals are properly filtered and conditioned.
  • The recommended power-up sequence for the SN7454N is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the internal circuitry is properly initialized before the device starts operating.
  • Yes, the SN7454N can operate from a 3.3V power supply, but the output voltage levels will be reduced accordingly. Ensure that the output voltage levels are compatible with the downstream devices in your system.
  • To troubleshoot issues with the SN7454N, start by verifying the power supply voltage and input signal levels. Use an oscilloscope to check the output waveforms and ensure that they meet the expected specifications. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
