Part Image

SN74ABT853NT - Texas Instruments

Description: Texas Instruments SN74ABT853NT, 16bit-Bit Parity Generator and Checker, 24-Pin PDIP

Download SN74ABT853NT Model

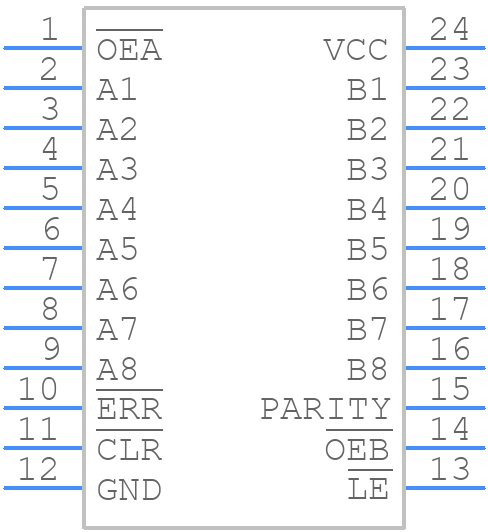

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN74ABT853NT - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - NT (R-PDIP-T24)
click to zoom
3D Models
SN74ABT853NT - Texas Instruments  - 3D model - Dual-In-Line Packages - NT (R-PDIP-T24)
click to zoom

SN74ABT853NT Details

  • Manufacturer Part Number:

    SN74ABT853NT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION

  • Control Type:

    INDEPENDENT CONTROL

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    ABT

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e4

  • Length:

    31.64 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS TRANSCEIVER

  • Max I(ol):

    0.064 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    38 mA

  • Prop. Delay@Nom-Sup:

    5.3 ns

  • Propagation Delay (tpd):

    5.3 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74ABT853NT Overview

Use the download button to access the SN74ABT853NT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74A, or try a keyword search, such as Bus Driver/Transceivers

Parts related to SN74ABT853NT

Showing 0 results

SN74ABT853NT Alternates

Showing results

Image Part Number Model
Part Image SNJ54ABT853JT Texas Instruments

8-Bit To 9-Bit Parity Bus Transceivers 24-CDIP -55 to 125

Part Image SN74ABT853NTE4 Texas Instruments

ABT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDIP24, ROHS COMPLIANT, PLASTIC, DIP-24

Part Image 74ABT853N NXP Semiconductors

IC ABT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDIP24, PLASTIC, DIP-24, Bus Driver/Transceiver

Part Image 935067520602 NXP Semiconductors

IC ABT SERIES, OCTAL 1-BIT TRANSCEIVER, TRUE OUTPUT, PDIP24, PLASTIC, DIP-24, Bus Driver/Transceiver
