The maximum operating frequency of the SN74ACT08DRG3 is typically around 100 MHz, but it can vary depending on the specific application and operating conditions.
To handle thermal issues, ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider using a heat sink or thermal pad. Also, follow the recommended operating temperature range of -40°C to 85°C.
The recommended power-on sequence is to apply VCC before applying input signals. This helps prevent unwanted output states during power-up.
Yes, the SN74ACT08DRG3 is compatible with 3.3V systems. However, ensure that the input signals are within the recommended voltage range of 0.8V to 2.7V for proper operation.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding or filtering components as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74ACT08DRG3 Overview

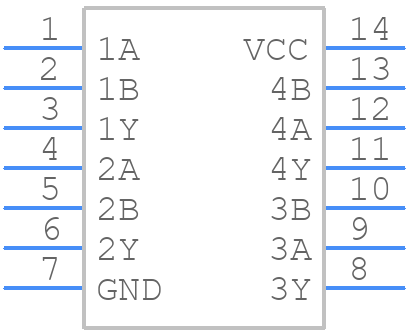

Use the download button to access the SN74ACT08DRG3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74A,
or try a keyword search, such as Gates
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
