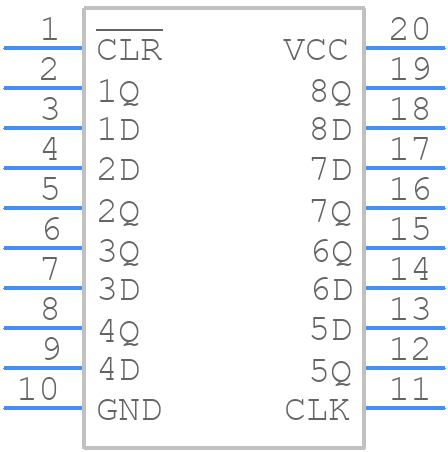

SN74AHCT273DGSR - Texas Instruments

SN74AHCT273DGSR Details

• Manufacturer Part Number:

  SN74AHCT273DGSR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Family:

  AHCT/VHCT/VT

• JESD-30 Code:

  R-PDSO-G20

• Length:

  5.1 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  D FLIP-FLOP

• Max Frequency@Nom-Sup:

  45000000 Hz

• Max I(ol):

  0.008 A

• Moisture Sensitivity Level:

  1

• Number of Bits:

  8

• Number of Functions:

  8

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP20,.20,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  0.04 mA

• Prop. Delay@Nom-Sup:

  11 ns

• Propagation Delay (tpd):

  11 ns

• Seated Height-Max:

  1.1 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Trigger Type:

  POSITIVE EDGE

• Width:

  3 mm

• fmax-Min:

  70 MHz
