The maximum operating frequency of the SN74ALS257ADR is 100 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, use proper PCB layout techniques, such as impedance matching, signal routing, and decoupling capacitors. Additionally, consider using series termination resistors and/or parallel termination resistors to reduce signal reflections.
The recommended power-on sequence is to apply VCC first, followed by VEE, and then the input signals. This helps prevent latch-up and ensures proper device operation.
Yes, the SN74ALS257ADR can operate in a 3.3V system, but the output voltage will be limited to 3.3V. Additionally, the input voltage threshold may be affected, and the device may not meet the specified propagation delay and rise/fall times.
To handle thermal issues, ensure good thermal conduction between the device and the PCB, use a heat sink if necessary, and avoid operating the device at maximum power dissipation for extended periods. Monitor the device temperature and adjust the operating conditions accordingly.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN74ALS257ADR Overview

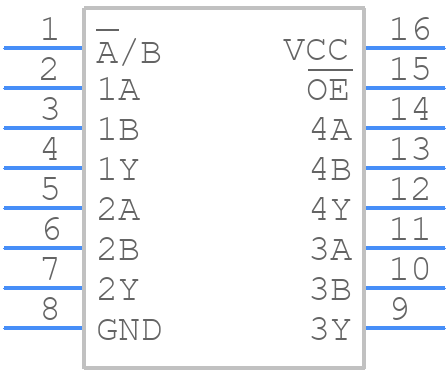

Use the download button to access the SN74ALS257ADR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74A,
or try a keyword search, such as Multiplexer/Demultiplexers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
