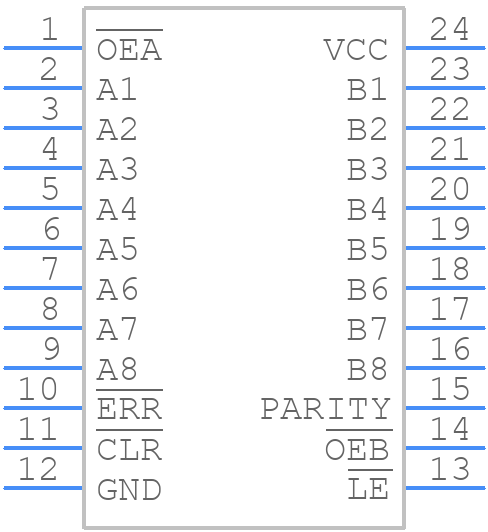

SN74ALS29854NT3 - Texas Instruments

SN74ALS29854NT3 Details

• Manufacturer Part Number:

  SN74ALS29854NT3

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  0.300 INCH, PLASTIC, DIP-24

• Pin Count:

  24

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  PARITY GENERATION A TO B; ERROR DETECTION B TO A; ODD PARITY

• Control Type:

  INDEPENDENT CONTROL

• Count Direction:

  BIDIRECTIONAL

• Family:

  ALS

• JESD-30 Code:

  R-PDIP-T24

• Length:

  31.64 mm

• Load Capacitance (CL):

  300 pF

• Logic IC Type:

  BUS TRANSCEIVER

• Max I(ol):

  0.048 A

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  24

• Operating Temperature-Max:

  70 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Power Supply Current-Max (ICC):

  100 mA

• Prop. Delay@Nom-Sup:

  8 ns

• Propagation Delay (tpd):

  13 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Trigger Type:

  LOW LEVEL

• Width:

  7.62 mm
