SN74ALS573CDBR - Texas Instruments

Description: Octal D-Type Transparent Latches With 3-State Outputs

Download SN74ALS573CDBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

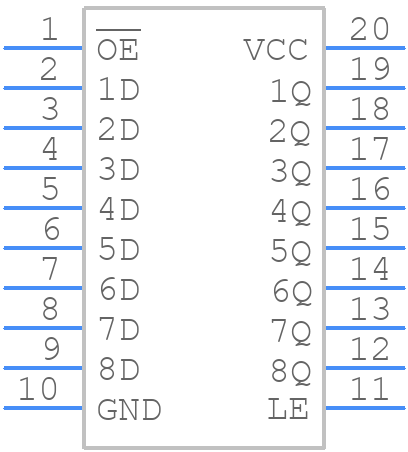

SN74ALS573CDBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74ALS573CDBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0020A
click to zoom
3D Models
SN74ALS573CDBR - Texas Instruments - 3D model - Small Outline Packages - DB0020A
click to zoom

SN74ALS573CDBR Details

  • Manufacturer Part Number:

    SN74ALS573CDBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    BROADSIDE VERSION OF 373

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    ALS

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    7.2 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    27 mA

  • Prop. Delay@Nom-Sup:

    20 ns

  • Propagation Delay (tpd):

    20 ns

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

SN74ALS573CDBR Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the SN74ALS573CDBR is typically around 100 MHz, but it can vary depending on the specific application, operating conditions, and output loading. It's recommended to check the device's timing characteristics and perform simulations to determine the maximum clock frequency for a specific design.
  • To ensure proper operation, the SN74ALS573CDBR should be powered with a stable and noise-free power supply. A decoupling capacitor of 0.1 μF to 1 μF should be placed as close as possible to the device's power pins to filter out noise and reduce power supply ripple. Additionally, the power supply voltage should be within the recommended operating range of 4.5 V to 5.5 V.
  • The SN74ALS573CDBR can sink or source up to 24 mA of current per output pin. However, it's recommended to limit the output current to 16 mA or less to ensure reliable operation and prevent overheating.
  • If the latch enable (LE) input is not used, it's recommended to tie it to the positive supply voltage (VCC) through a 1 kΩ to 10 kΩ resistor to ensure that the latch is enabled. Leaving the LE input floating can cause unpredictable behavior and may lead to latch-up or other issues.
  • The SN74ALS573CDBR is specified to operate at 5 V, but it can be used in a 3.3 V system with some limitations. The device's input and output voltage levels will be reduced, and the output current drive capability will be lower. Additionally, the device's timing characteristics may be affected. It's recommended to consult the datasheet and perform simulations to ensure that the device meets the system's requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74ALS573CDBR Overview

Use the download button to access the SN74ALS573CDBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74A, or try a keyword search, such as Bus Driver/Transceivers
