The maximum operating frequency of the SN74ALS641ANSR is 100 MHz, but it can vary depending on the system design and capacitive loading.
To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors to match the impedance of the transmission line. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
The recommended power-on sequence is to apply VCC first, followed by VEE, and then the input signals. This helps to prevent latch-up and ensures proper device operation.
Yes, the SN74ALS641ANSR can be used in a 3.3V system, but it is recommended to use a voltage regulator to ensure a stable 5V supply to the device. Additionally, ensure that the input signals are compatible with the 5V logic levels.
To handle thermal issues, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and consider using a thermal interface material to improve heat transfer. Additionally, ensure that the device is operated within its recommended temperature range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN74ALS641ANSR Overview

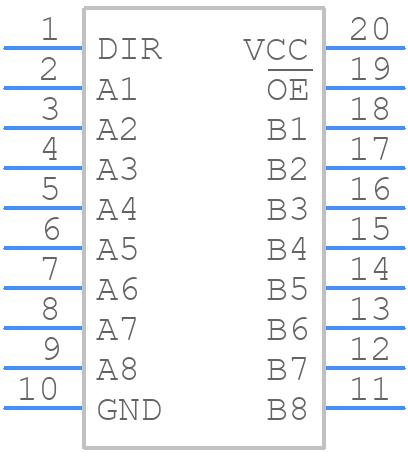

Use the download button to access the SN74ALS641ANSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74A,
or try a keyword search, such as Bus Driver/Transceivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
