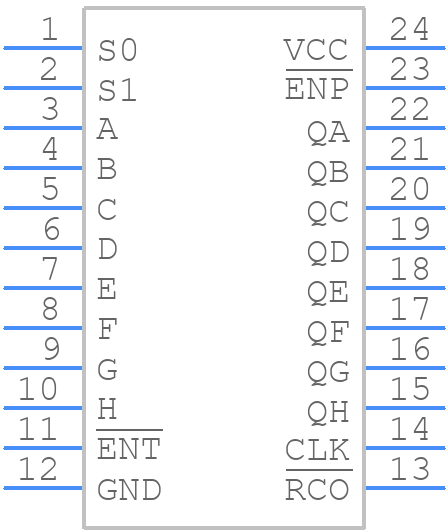

SN74ALS867ADWR - Texas Instruments

SN74ALS867ADWR Details

• Manufacturer Part Number:

  SN74ALS867ADWR

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  GREEN, PLASTIC, SO-24

• Pin Count:

  24

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  TCO OUTPUT

• Count Direction:

  BIDIRECTIONAL

• Family:

  ALS

• JESD-30 Code:

  R-PDSO-G24

• Length:

  15.4 mm

• Load Capacitance (CL):

  50 pF

• Load/Preset Input:

  YES

• Logic IC Type:

  BINARY COUNTER

• Max Frequency@Nom-Sup:

  35000000 Hz

• Max I(ol):

  0.008 A

• Mode of Operation:

  SYNCHRONOUS

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP24,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Power Supply Current-Max (ICC):

  45 mA

• Prop. Delay@Nom-Sup:

  16 ns

• Propagation Delay (tpd):

  16 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  TTL

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Trigger Type:

  POSITIVE EDGE

• Width:

  7.5 mm

• fmax-Min:

  35 MHz
