SN74AUC16373DGGR - Texas Instruments

Description: 16-Bit Transparent D-Type Latch With 3-State Outputs

Download SN74AUC16373DGGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

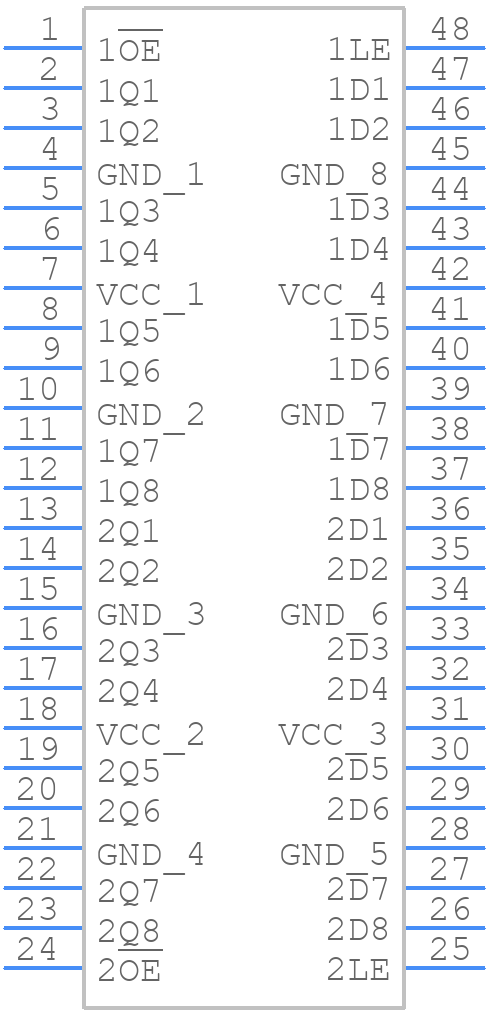

SN74AUC16373DGGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74AUC16373DGGR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGG (R-PDSO-G48)
click to zoom
3D Models
SN74AUC16373DGGR - Texas Instruments - 3D model - Small Outline Packages - DGG (R-PDSO-G48)
click to zoom

SN74AUC16373DGGR Details

  • Manufacturer Part Number:

    SN74AUC16373DGGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Control Type:

    ENABLE LOW/HIGH

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    AUC

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Load Capacitance (CL):

    30 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.009 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    16

  • Number of Ports:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.02 mA

  • Prop. Delay@Nom-Sup:

    4.9 ns

  • Propagation Delay (tpd):

    4.9 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    2.7 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

SN74AUC16373DGGR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLVAE03, which includes guidelines for signal routing, decoupling, and power distribution to ensure optimal performance and minimize noise.
  • The SN74AUC16373DGGR requires a specific power sequencing order to prevent latch-up and ensure proper operation. The recommended power sequencing is VCCIO first, followed by VCC, and then the input signals. A detailed power sequencing diagram is provided in the datasheet.
  • The maximum operating frequency of the SN74AUC16373DGGR is 100 MHz, but this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information on frequency planning and signal integrity.
  • The recommended pull-up/pull-down resistors for the SN74AUC16373DGGR inputs depend on the specific application and operating conditions. A general guideline is to use a pull-up resistor in the range of 1 kΩ to 10 kΩ and a pull-down resistor in the range of 1 kΩ to 4.7 kΩ. However, it's recommended to consult the datasheet and application notes for more specific guidance.
  • The thermal derating for the SN74AUC16373DGGR is specified in the datasheet. The device is rated for operation up to 85°C, but the maximum power dissipation decreases as the temperature increases. It's recommended to consult the datasheet for the specific thermal derating curve and to ensure proper thermal management in the system design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74AUC16373DGGR Overview

Use the download button to access the SN74AUC16373DGGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74A, or try a keyword search, such as Bus Driver/Transceivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
