SN74AUP2G125RSER - Texas Instruments

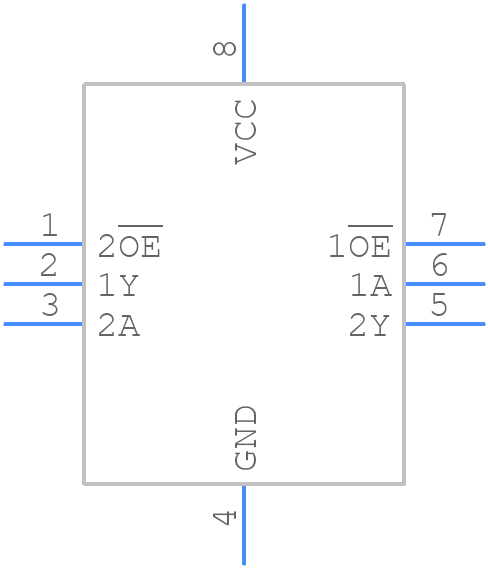

SN74AUP2G125RSER Details

• Manufacturer Part Number:

  SN74AUP2G125RSER

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Control Type:

  ENABLE LOW

• Count Direction:

  UNIDIRECTIONAL

• Family:

  AUP/ULPA

• JESD-30 Code:

  S-PQCC-N8

• JESD-609 Code:

  e4

• Length:

  1.5 mm

• Load Capacitance (CL):

  30 pF

• Logic IC Type:

  BUS DRIVER

• Max I(ol):

  0.004 A

• Moisture Sensitivity Level:

  1

• Number of Bits:

  1

• Number of Functions:

  2

• Number of Ports:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  UQCCN

• Package Equivalence Code:

  LCC8,.06SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, ULTRA THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  0.0009 mA

• Prop. Delay@Nom-Sup:

  7.9 ns

• Propagation Delay (tpd):

  37.9 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.6 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  0.8 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.5 mm
