SN74AUP2G80DCUR - Texas Instruments

Description: Low-Power Dual Positive-Edge-Triggered D-Type Flip-Flop

Download SN74AUP2G80DCUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

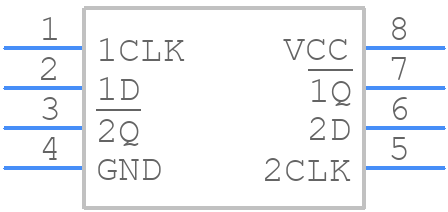

SN74AUP2G80DCUR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74AUP2G80DCUR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCU (R-PDSO-G8)
click to zoom
3D Models
SN74AUP2G80DCUR - Texas Instruments - 3D model - Small Outline Packages - DCU (R-PDSO-G8)
click to zoom

SN74AUP2G80DCUR Details

  • Manufacturer Part Number:

    SN74AUP2G80DCUR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    AUP/ULP/V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.3 mm

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    80000000 Hz

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.0009 mA

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    2 mm

  • fmax-Min:

    260 MHz

SN74AUP2G80DCUR Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the SN74AUP2G80DCUR is 100 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure signal integrity, use proper PCB layout techniques, such as impedance matching, signal routing, and decoupling. Additionally, consider using series termination resistors and/or parallel termination capacitors to reduce signal reflections and ringing.
  • Yes, the SN74AUP2G80DCUR can operate in a 3.3V system. The recommended power supply voltage range is 1.65V to 3.6V, with a typical operating voltage of 3.3V. Ensure that the power supply is stable and within the recommended range to ensure proper device operation.
  • The SN74AUP2G80DCUR has built-in ESD protection, but it's still important to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-protected package when not in use.
  • The maximum current rating for the SN74AUP2G80DCUR outputs is 4mA per pin, with a total device current limit of 50mA. Ensure that the output current does not exceed these limits to prevent device damage or malfunction.
