Part Image

SN74AVC4T774RGYR - Texas Instruments

Description: 4-Bit Dual-Supply Bus Transceiver With Configurable Voltage-Level Shifting and 3-State Outputs

Download SN74AVC4T774RGYR Model

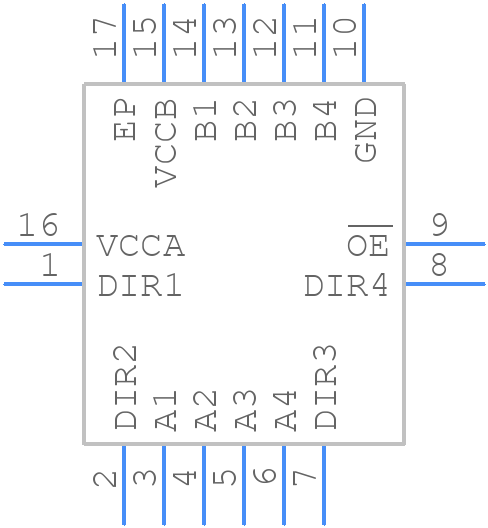

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN74AVC4T774RGYR - Texas Instruments PCB footprint - Other - Other - SN74AVC4T774RGYR-2
click to zoom
3D Models
SN74AVC4T774RGYR - Texas Instruments  - 3D model - Other - SN74AVC4T774RGYR-2
click to zoom

SN74AVC4T774RGYR Details

  • Manufacturer Part Number:

    SN74AVC4T774RGYR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    GREEN, PLASTIC, MO-241BB, QFN-16

  • Pin Count:

    16

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    TWO SEPARATE CONFIGURABLE POWER-SUPPLY FOR PORT A AND PORT B

  • Control Type:

    COMMON CONTROL

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    AVC

  • JESD-30 Code:

    R-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    BUS TRANSCEIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16/20,.14X.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.016 mA

  • Prop. Delay@Nom-Sup:

    2.4 ns

  • Propagation Delay (tpd):

    5.1 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.5 mm

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74AVC4T774RGYR Overview

Use the download button to access the SN74AVC4T774RGYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74A, or try a keyword search, such as Bus Driver/Transceivers

Parts related to SN74AVC4T774RGYR

Showing 0 results

SN74AVC4T774RGYR Alternates

Showing results

Image Part Number Model
Part Image 74AVC4T774RGYRG4 Texas Instruments

4-bit dual-supply bus transceiver with configurable voltage-level shifting and 3-state outputs 16-VQFN -40 to 85
